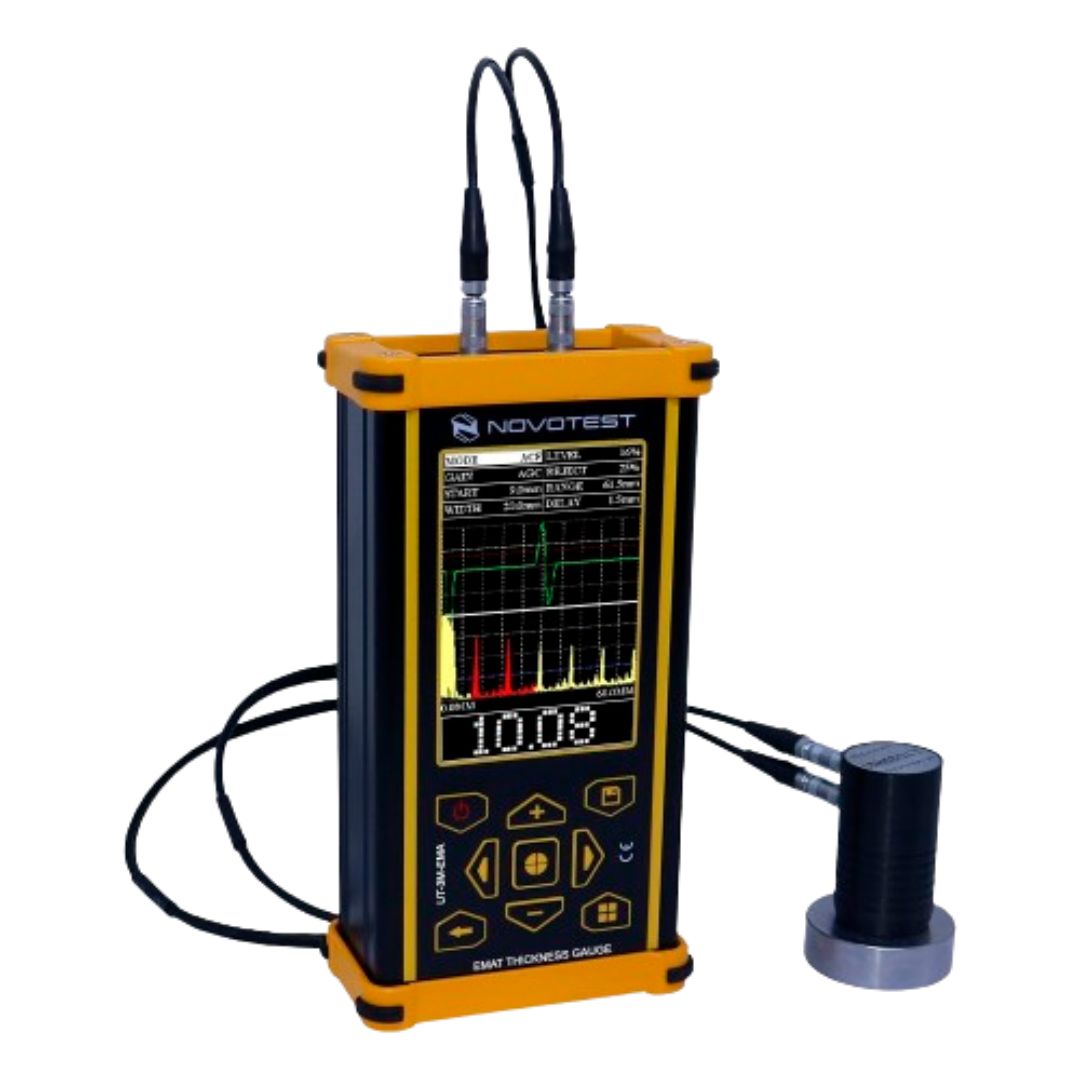

EMAT Thickness Gauge
Industrial inspection equipment
Overview
Electromagnetic acoustic transducer for thickness measurement
Key Highlights
- The thickness gauge boasts a unique automatic mode that sets it apart from competitors. The mode that makes it easy for anyone to measure metal thickness quickly and accurately. The instrument automatically analyzes the signal selects the correct measurement method and adjusts the settings. Users see the thickness result displayed in large numbers.
- The gauge also features a B-scan mode. This mode gives users a visual profile of the product like a picture making it easy to read. Using a special probe cart users can scan larger objects and obtain a detailed thickness profile.
- To sort products based on set thickness limits the gauge offers a special control mode. Simply set the minimum and maximum thickness values and get a graphical display of the results. An alarm sounds if the measured thickness falls outside of these limits. This mode also helps evaluate corrosion damage as a percentage of the product’s original thickness.
- For expert testing operators can manually measure thickness using a variety of methods such as the autocorrelation function (ACF) measuring between two peaks in a gate zero-crossing and echo methods.
Request a Quote
Get pricing, availability, and technical guidance.
Request QuoteResponse within 1 business day.
Technical Specifications
| Measurement Range | 3 to 300 mm (steel) |
| Temperature Range | Up to 500°C |
| Accuracy | ±0.1 mm or ±1% (whichever is greater) |
| Frequency | 2.5 MHz |
| Display | 3.5 inch 320 * 480 |
| Power Supply | Built-in Li-ion Battery |
| Operating Time | Up to 8 hours continuous |
| Weight | 1.2 kg |
| Dimensions | 220 x 95 x 45 mm |
| Measuring thicknesses range for steel, mm | 0.6…300.0 (depending on the probe type and object characteristics) |
| Coating thickness or air gap range, mm | up to 6 (depending on the object characteristics) |
| Probes temperature measurement ranges, ° C: Standard probe High-temperature probe | -20 to +50 ° C -20 to +250 ° C, (depending on the conditions and measurement and cooling cycle – up to +500-600 ° C) |
| Measurement units | mm, inch, μs |
| Resolution, mm | 0,01 |
| Type of ultrasonic wave | transverse |
| Manual gain range, dB | 30-100 |
| Ultrasound velocity adjustment range, m/s | 1000-9999 |
| Frequency averaging signal | 1-128 |
| Operating modes | A-scan, B-scan, Control mode |
| Measurement methods | Autocorrelation function (ACF), Echo, Echo Echo (Dual Echo), Peak peak, Front |
| Menu Language | English, Ukrainian, Russian, (*additional languages available by request) |
| Standard | ASTM E797, ISO 16809:2017, EN 14127, EN15317, EN12668-1 |
| Weight of the electronic unit, not more, kg | 0.5 |
| Dimensions (L x W x H) | 165x90x50mm |
| Time of continuous work, not less than, h | 8 |
| Operating temperature range for the electronic unit, ° C | -20 to +50 |
Applications
High-temperature pipe and vessel inspection
Online monitoring of process equipment
Corrosion monitoring through coatings
Petrochemical plant maintenance
Power generation equipment inspection
Steel mill and foundry applications
Offshore platform inspection
Storage tank floor inspection
