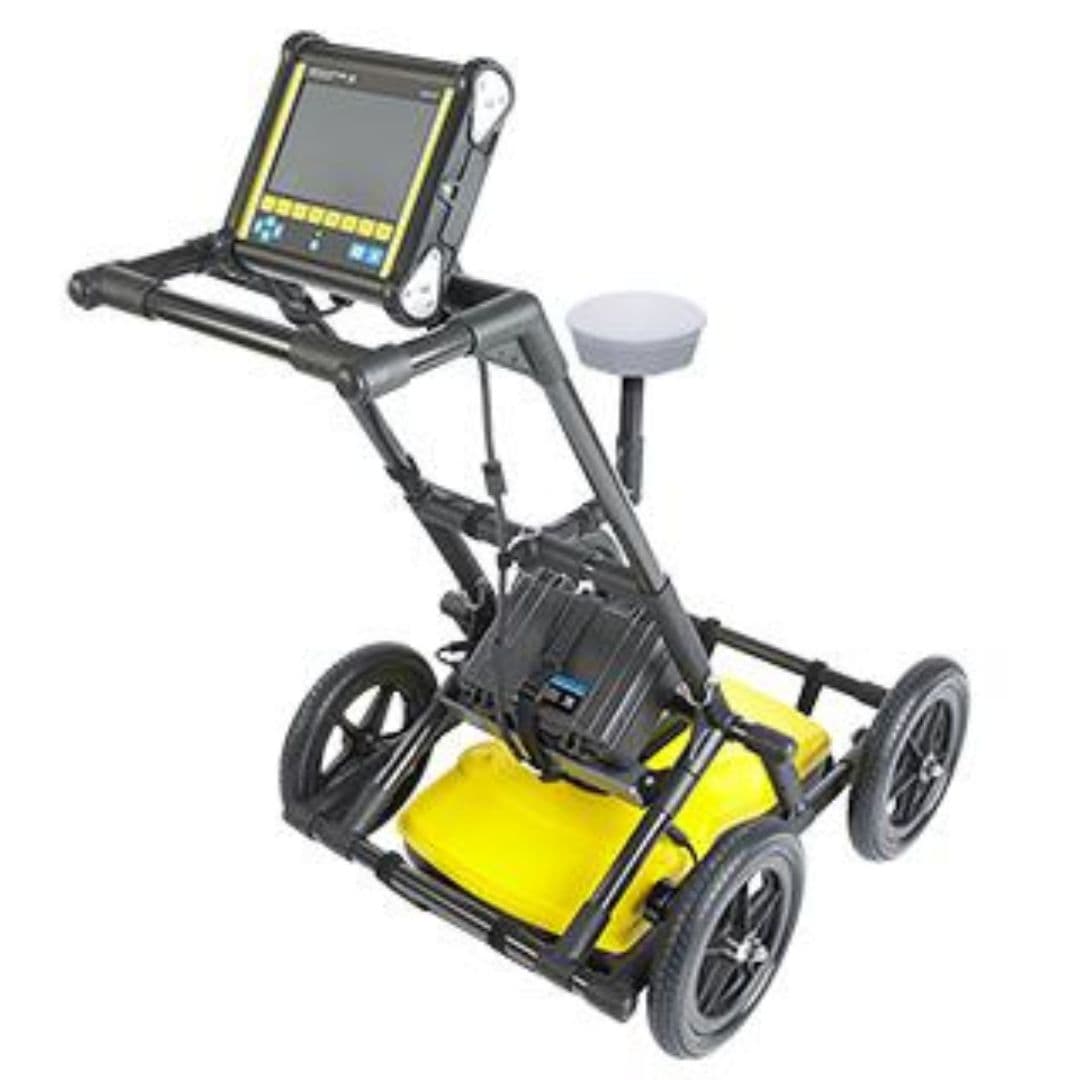

Ground Penetrating Radar (GPR)
Industrial inspection equipment
Overview
Advanced GPR system for underground utility detection and mapping
Key Highlights
- Deep penetration up to 30 meters
- Real-time data visualization
- Multi-frequency antenna options
- GPS integration for mapping
- Rugged field-ready design
- Advanced signal processing
Request a Quote
Get pricing, availability, and technical guidance.
Request QuoteResponse within 1 business day.
Technical Specifications
| Frequency Range | 25 MHz - 1000 MHz |
| Penetration Depth | Up to 30 meters |
| Display | 10.1" High-resolution touchscreen |
| Data Storage | 256 GB internal + SD card |
| Battery Life | 8-10 hours continuous operation |
| Operating Temperature | -20 degC to +50 degC |
| Weight | 8.5 kg (complete system) |
| Connectivity | Wi-Fi, Bluetooth, USB |
Applications
Underground utility mapping
Concrete structure inspection
Archaeological surveys
Environmental site assessment
Road and pavement evaluation
Geological investigations
