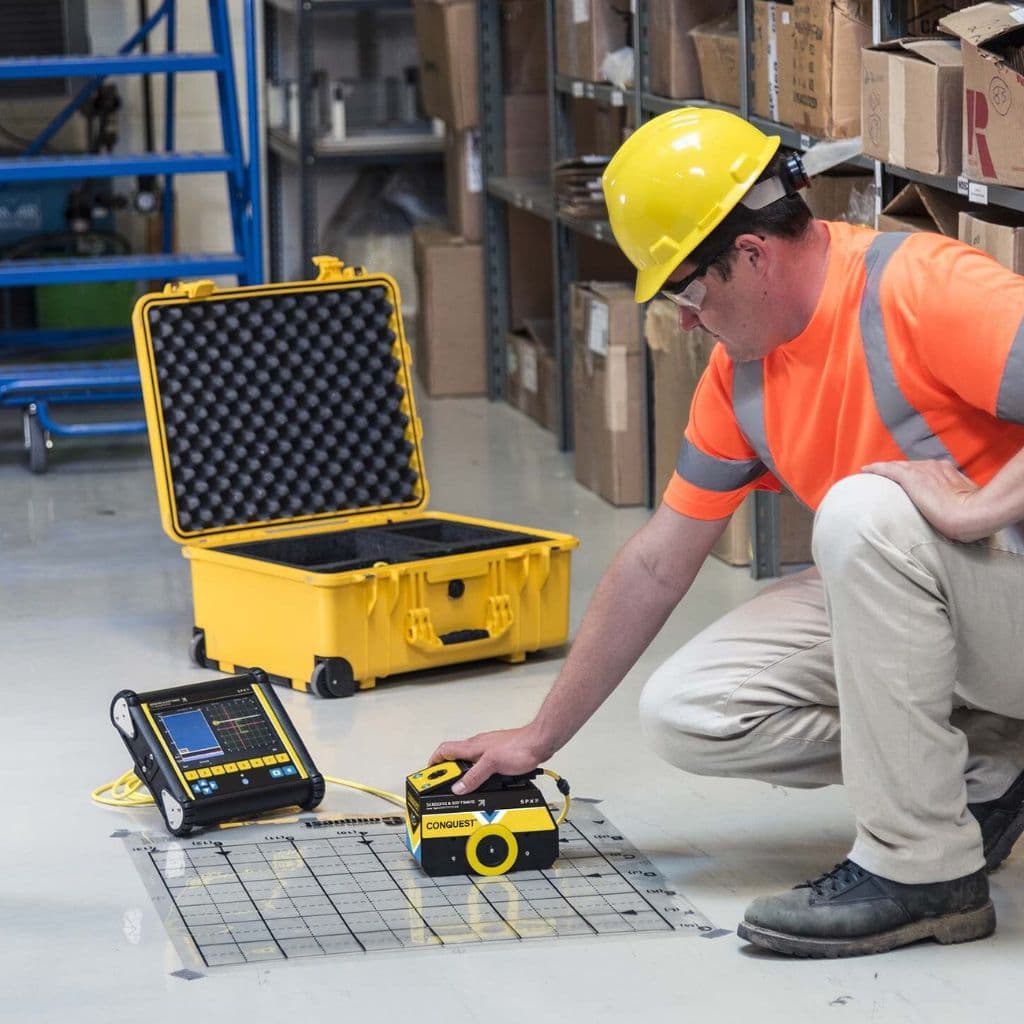

Conquest® 100 Concrete Scanner
Industrial inspection equipment
Overview
Advanced concrete scanning system for structure analysis and rebar detection
Key Highlights
- Real-time imaging
- Rebar detection and mapping
- Depth measurement
- Post-tension cable detection
- Void and defect identification
- Easy-to-use interface
Request a Quote
Get pricing, availability, and technical guidance.
Request QuoteResponse within 1 business day.
Technical Specifications
| Frequency | 1600 MHz |
| Penetration Depth | Up to 400 mm in concrete |
| Display | 8" Color touchscreen |
| Resolution | High-definition imaging |
| Battery Life | 6-8 hours |
| Operating Temperature | -10 degC to +45 degC |
| Weight | 3.2 kg |
| Data Storage | 128 GB |
Applications
Concrete structure inspection
Rebar location and mapping
Pre-construction surveys
Renovation and demolition planning
Quality control
Structural assessment
