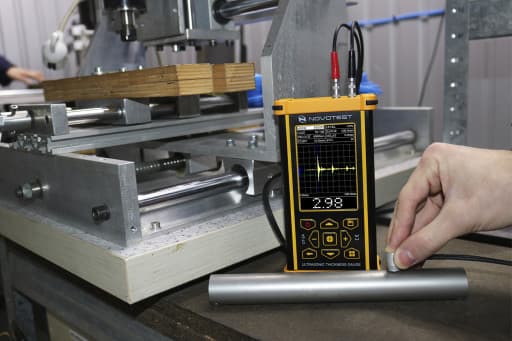

Ultrasonic Thickness Gauge NOVOTEST UT-2A (A-Scan)

Industrial inspection equipment

Overview

Ultrasonic thickness gauge with A-scan UT-2A is a powerful, lightweight and portable thickness gauge, made in an ergonomic shock-resistant case with rubber protectors – a modern industrial version of a general-purpose thickness gauge. It is an excellent choice for expert ultrasonic testing in the laboratory and the field conditions.

Key Highlights

Wide range of measuring thicknesses
Function of thickness gauge and flaw detector
Convenience and ease in operation
B-scan mode which allows user to get the product profile like a picture that is easy to read
Minimum number of controls
Select the type of probe from archive
Preset velocity of ultrasound
High brightness color display
Indicator the presence of acoustic contact

Request a Quote

Get pricing, availability, and technical guidance.

Request Quote

Response within 1 business day.

Technical Specifications

Measurement Range	0.75-500mm (steel)
Accuracy	±0.05mm or ±0.5%
Resolution	0.01mm
Display	3.5" color TFT
A-Scan Display	Full waveform with zoom
Data Storage	50,000 readings
Connectivity	USB, Bluetooth
Power Supply	Built-in Li-ion Battery
Operating Time	12+ hours
Weight	350g
Dimensions	160 x 90 x 40mm
Probe type range for steel, mm: Probe 10MHz – P112-10-2×3, Probe 10MHz – P112-10-6 / 2, Probe 5MHz – P112-5-10 / 2, Probe 2,5MHz – P112-2,5-12 / 2, Probe 2MHz – P112-2-20 / 2, Probe 1,25MHz – P112-1.25-20 / 2	0.4-15, 0.45-300, 0.8-500, 2.5-1000, 3-1200, 4-1500
Probe dimensions, mm: Probe 10MHz – P112-10-2×3, Probe 10MHz – P112-10-6 / 2, Probe 5MHz – P112-5-10 / 2, Probe 2,5MHz – P112-2,5-12 / 2, Probe 2MHz – P112-2-20 / 2, Probe 1,25MHz – P112-1.25-20 / 2	4×9×60, D12×15, D17×20, D20×21, D30×28, D30×35
Dimensions of probe contact area/crystal, mm: Probe 10MHz – P112-10-2×3, Probe 10MHz – P112-10-6 / 2, Probe 5MHz – P112-5-10 / 2, Probe 2,5MHz – P112-2,5-12 / 2, Probe 2MHz – P112-2-20 / 2, Probe 1,25MHz – P112-1.25-20 / 2	2×7/2×3, D9/D6, D14/D10, D16/D12, D24/D20, D24/D20
Optional probes: 5MHz high-temperature probe (echo) 10/2, 2,5MHz probe (echo-echo) 12/2 for through coating, 5MHz probe (echo-echo) 10/2 for through coating, 10MHz probe (echo-echo) 6/2 for through coating, 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable, 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable, 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable	range 0,8 – 300 mm, surface temperature up to 250 °С/482 °F range 6 – 30 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 2 – 12 mm, coating thickness range – up to 0,6 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm
Compatible probe types	Dual-element Single-element (including probes of other manufacturers) EMAT
Measurement units	1 –mm, inch, μs 10 MHz
Resolution, mm/inch	0,01/0,001
Ultrasound velocity adjustment range, m/s	700-17000
Ultrasound velocity in the standard device sample, m/s	6070 ± 70
Operating modes	A-scan, B-scan, Digital mode, Control mode, Manual
Measurement methods	Echo, Echo Echo (Dual Echo), Peak-peak
PC cable connection	Online – novotest.info, Offline – NOVOTEST AWP
Wireless connection with Android gadgets via NOVOTEST Lab App	No
Storage capacity of measurement results	7000 and more (Limited only by the memory card)
Menu Language	English, Russian, *additional languages available by request
Weight of the electronic unit, not more, kg	0,5
Dimensions (L x W x H)	165x90x50 mm
Time of continuous work, not less than, h	10 (up to 20 by special order)
Operating temperature range for the electronic unit, ° C	-20 to +40
Air moisture, no more	98 %, at 35 °С

Applications

Corrosion mapping

Composite material inspection

Multi-layer thickness measurement

Critical structure monitoring

Quality assurance testing
