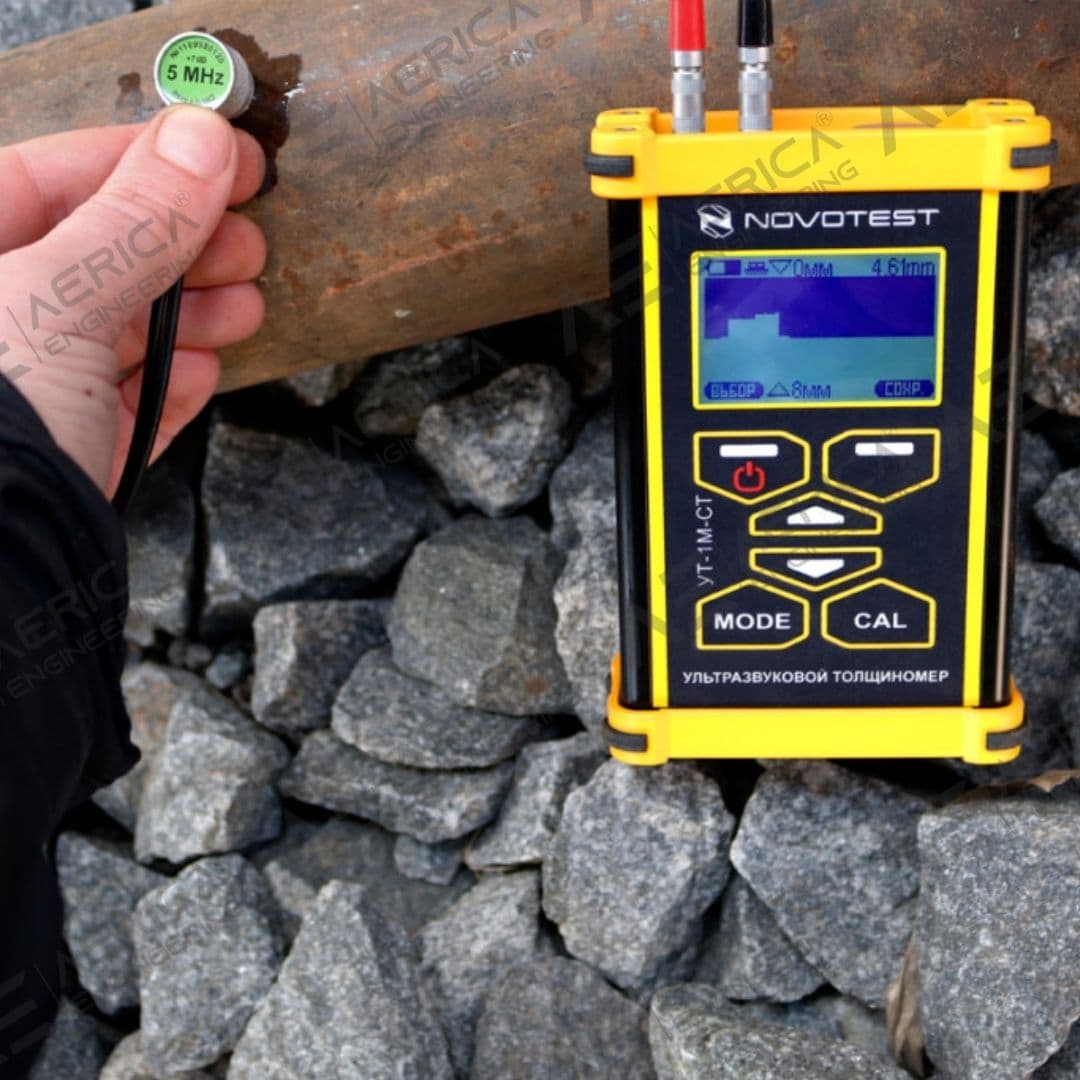

Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST

Industrial inspection equipment

Overview

High-temperature ultrasonic thickness gauge

Key Highlights

Unique additional protection of metal housing
Material selection and automatic setting of ultrasound velocity
Large graphic display of high contrast and backlight
Display of measured thickness in mm and inches
Convenient menu in the device
Wide choice of UT probes with preset settings in the device
Modes of statistical processing of measurements
Ability to restore factory calibrations
Ability to adjust all parameters of the acoustic path
Ability of further adjusting the user gain (±20 Db) directly from the measurement mode
Wide measurement range (0.4 to 1500 mm and more)
Available probes 1.25-10 MHz:
– 1.25MHz probe (echo) 20/2 for substantial thicknesses or materials with exceptionally high signal attenuation
– 2.0MHz probe (echo) 20/2 for large thicknesses or materials with high signal attenuation
– 2.5MHz probe (echo) 12/2 for thick samples
– 5MHz probe (echo) 10/2 for a wide range of basic samples
– 10MHz probe (echo) 6/2 for thin samples
– 10MHz probe (echo) 2х3 for products of complex shapes
usually turbine blades
– 5MHz high-temperature probe (echo) 10/2 for heated samples up to 250 °С/482 °F
– 2.5MHz probe (echo-echo) 12/2 for through coating
– 5MHz probe (echo-echo) 10/2 for through coating
– 10MHz probe (echo-echo) 6/2 for through coating
– 5MHz probe (echo-echo) 10/2 for through coating underwater 10 m cable
– 5MHz probe (echo-echo) 10/2 for through coating underwater 20 m cable
– 5MHz probe (echo-echo) 10/2 for through coating underwater 30 m cable
B-scan and control modes
Through-coating (echo-echo) mode
Threshold setting with automatic alarm
Saving the settings for different probes
Compatibility with probes of other manufacturers
V-path correction and TVG adjusting for the user’s probes
Measurement storage and PC software
PC cable connection:
– Online – NOVOTEST.INFO/USB-connect
– Offline – NOVOTEST USB-Connect

Request a Quote

Get pricing, availability, and technical guidance.

Request Quote

Response within 1 business day.

Technical Specifications

Measurement Range	3-300mm (steel)
Surface Temperature	Up to 300°C
Accuracy	±0.5mm or ±2%
Resolution	0.1mm
Probe Type	High-temperature delay line
Display	LCD with backlight
Power Supply	2 x AA batteries
Operating Time	100+ hours
Weight	200g
Dimensions	125 x 70 x 30mm
Probe type range for steel, mm: Probe 10MHz – P112-10-2×3, Probe 10MHz – P112-10-6 / 2, Probe 5MHz – P112-5-10 / 2, Probe 2,5MHz – P112-2,5-12 / 2, Probe 2MHz – P112-2-20 / 2, Probe 1,25MHz – P112-1.25-20 / 2	0.4-15, 0.45-300, 0.8-500, 2.5-1000, 3-1200, 4-1500
Probe dimensions, mm: Probe 10MHz – P112-10-2×3, Probe 10MHz – P112-10-6 / 2, Probe 5MHz – P112-5-10 / 2, Probe 2,5MHz – P112-2,5-12 / 2 Probe 2MHz – P112-2-20 / 2 Probe 1,25MHz – P112-1.25-20 / 2	4×9×60, D12×15, D17×20, D20×21, D30×28, D30×35
Dimensions of probe contact area/crystal, mm: Probe 10MHz – P112-10-2×3, Probe 10MHz – P112-10-6 / 2, Probe 5MHz – P112-5-10 / 2, Probe 2,5MHz – P112-2,5-12 / 2, Probe 2MHz – P112-2-20 / 2, Probe 1,25MHz – P112-1.25-20 / 2	2×7/2×3, D9/D6, D14/D10, D16/D12, D24/D20, D24/D20
Optional probes: 5MHz high-temperature probe (echo) 10/2, 2,5MHz probe (echo-echo) 12/2 for through coating, 5MHz probe (echo-echo) 10/2 for through coating, 10MHz probe (echo-echo) 6/2 for through coating, 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable, 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable, 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable	range 0,8 – 300 mm, surface temperature up to 250 °С/482 °F range 6 – 30 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 2 – 12 mm, coating thickness range – up to 0,6 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm
Compatible probe types	Ultrasonic, dual-element, longitudinal waves (including probes of other manufacturers)
Compatibility with Active EMAT Transducer EMAT-A1	No
Probe calibrations (V-path, TVG, etc.)	factory for NOVOTEST probes users for probes of other manufacturers
Probe cable connector type	2 Lemo 00
Probe cable length, m	1,2
Measurement scales	mm (m/s), inch (inch/μs)
Measurement resolution, mm/inch	0.01/0.001, (0.01/0.0001 by request)
Basic measurement accuracy, mm	± (0,01 T+0.05) (*For range 0.8 – 300 mm)
Gain range, dB	± 20
Response time, with no more than, s	1
Setting range of the ultrasonic velocity, m / s	1000-17000
Preset velocities for materials	Steel (8 different grades), Aluminum, Iron, Cast Iron, Zinc, Chromium, Copper, Brass, Bronze, Silver, Gold, Nickel, Tungsten, Tin, Lead, Molybdenum, Manganese, Magnesium, Rubber, Polystyrene, Plexiglas, Capron, Caprolon, ED-5, Ebonite, Porcelain, Teflon, Textolite, Silicate Glass, Acrylic glass, User
Operating modes	Normal, B-scan, Control mode
Standards	ASTM E797 EN 14127 EN15317
Body type / Dust and moisture protection level	Plastic, with shockproof silicone case Standard for shop and field operation IP54
Calibration thickness block on the body	6 mm (Steel/~6080 m/s)
PC cable connection	Online – NOVOTEST.INFO/USB-connect Offline – NOVOTEST USB-Connect
Wireless connection with Android gadgets via NOVOTEST Lab App	No
Storage capacity of measurement results	128
Measurement archives	Device menu, PDF, Excel (CSV)
Menu languages	English, Spanish, Ukrainian, Russian (other languages optional)
Operating environment	Temperature:-20°C~50°C, Humidity: 30%~80%R.H.
Power supply	DC 3V (2 pcs standard batteries AA)
Time of continuous work hours, not less, h	25
Charging	External charger for 2pcs AA batteries
Weight of electronic unit with batteries, no more, kg	0.25
Overall dimensions, mm	130x90x40
Package weight, kg	1.5
Package dimensions, cm	332710
Documents	Operation manual UT-1M, Quick guide UT-1M/-ST, Brochure UT-1M/-2A
Country of origin	Made in Ukraine (Europe)
Warranty	Basic – 12 months for electronic unit – 6 months for probes Extended (optional) – up to 3 years

Applications

Hot pipeline inspection

Furnace and boiler tube measurement

High-temperature process equipment

Thermal power plant maintenance

Petrochemical hot surface inspection
