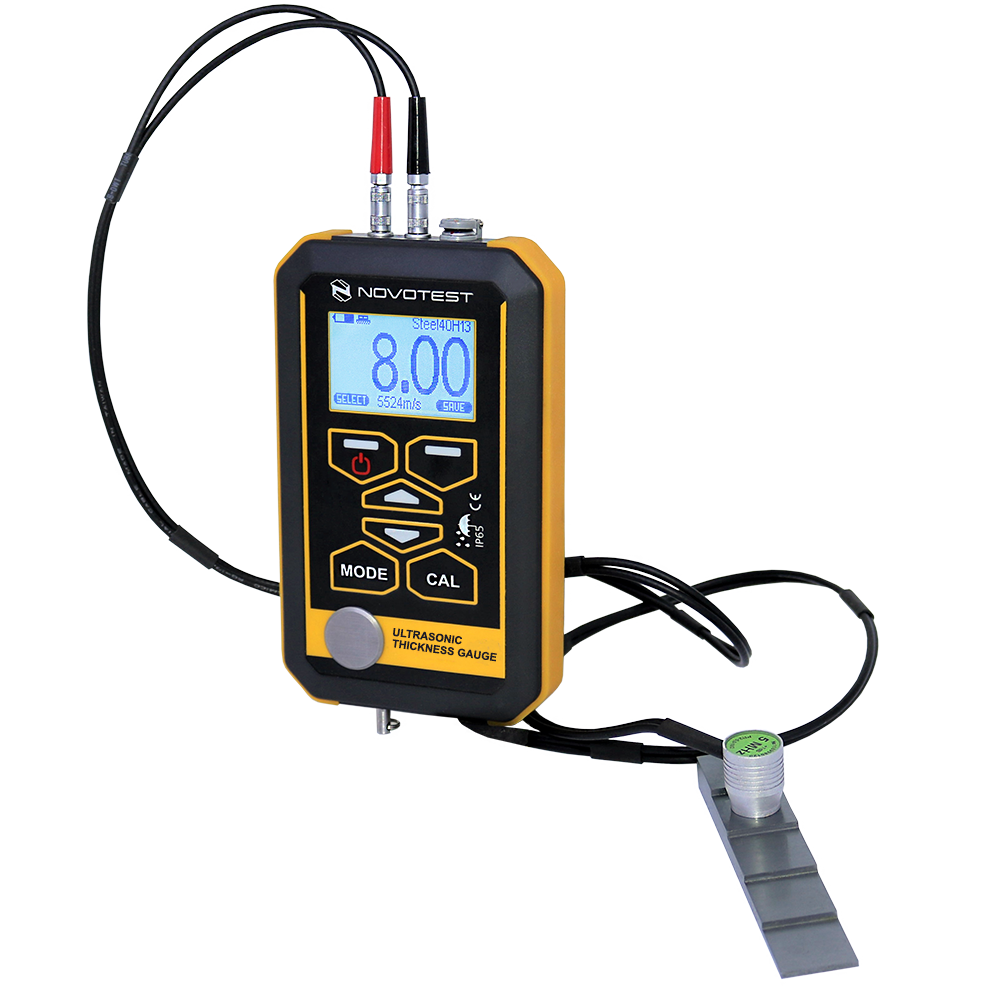

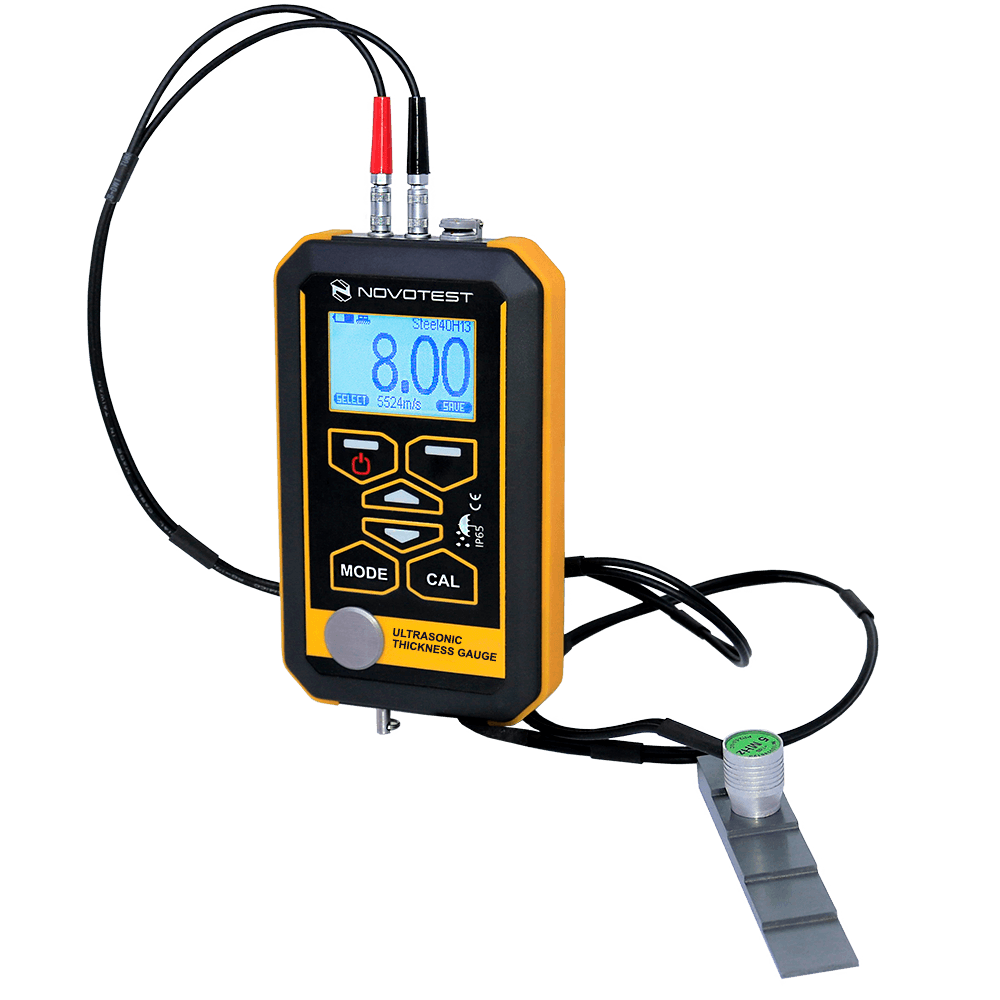

Ultrasonic Thickness Gauge NOVOTEST UT-1M-IP

Industrial inspection equipment

Overview

IP-rated ultrasonic thickness gauge

Key Highlights

Unique protection from dust and moisture previously not available in the market of ultrasonic thickness gauges of general purpose. By default the device comes with a degree of dust-moisture protection IP65. This protection degree can be increased up to IP67 (submerged in water) at order
Unprecedented autonomy of the device – increased up to 200 hours continuous operation time of the thickness gauge
Special rubber lining on the side surfaces of the casing facilitates the convenient retention of the thickness gauge in the user’s hand
Device has light weight and dimensions in comparison with similar protected thickness gauges
Saved data can be transmit to PC
Material selection and automatic setting of ultrasound velocity
Large graphic display of high contrast and backlight
Display of measured thickness in mm and inches
Convenient menu in the device
Wide choice of UT probes with preset settings in the device
Modes of statistical processing of measurements
Ability to restore factory calibrations
Ability to adjust all parameters of the acoustic path
Ability of further adjusting the user gain directly from the measurement mode
Wide range of testing
Mode of audible and visual alarm when leaving the established ranges
Wireless connection with Android gadgets via NOVOTEST Lab App (optionally with UT-1M-IP (Lab) model only)
Wide measurement range (0.4 to 1500 mm and more)
Available probes 1.25-10 MHz:
– 1.25MHz probe (echo) 20/2 for substantial thicknesses or materials with exceptionally high signal attenuation
– 2.0MHz probe (echo) 20/2 for large thicknesses or materials with high signal attenuation
– 2.5MHz probe (echo) 12/2 for thick samples
– 5MHz probe (echo) 10/2 for a wide range of basic samples
– 10MHz probe (echo) 6/2 for thin samples
– 10MHz probe (echo) 2х3 for products of complex shapes
usually turbine blades
– 5MHz high-temperature probe (echo) 10/2 for heated samples up to 250 °С/482 °F
– 2.5MHz probe (echo-echo) 12/2 for through coating
– 5MHz probe (echo-echo) 10/2 for through coating
– 10MHz probe (echo-echo) 6/2 for through coating
– 5MHz probe (echo-echo) 10/2 for through coating underwater 10 m cable
– 5MHz probe (echo-echo) 10/2 for through coating underwater 20 m cable
– 5MHz probe (echo-echo) 10/2 for through coating underwater 30 m cable
Gain adjustment (±20 Db)
Preset velocities for many materials
B-scan and control modes
Through-coating (echo-echo) mode
Threshold setting with automatic alarm
Saving the settings for different probes
Compatibility with probes of other manufacturers
V-path correction and TVG adjusting for the user’s probes
Measurement storage and PC software
PC cable connection:
– Online – NOVOTEST.INFO/USB-connect
– Offline – NOVOTEST USB-Connect
Wireless connection with Android gadgets via NOVOTEST LAB App (only for UT-1M-IP (Lab))

Request a Quote

Get pricing, availability, and technical guidance.

Request Quote

Response within 1 business day.

Technical Specifications

Measurement Range	0.8-300mm (steel)
Accuracy	±0.1mm or ±1%
Resolution	0.01mm
Display	Color LCD with backlight
Protection Rating	IP65
Data Storage	10,000 readings
Power Supply	Rechargeable Li-ion / AA batteries
Operating Time	150+ hours
Weight	280g
Dimensions	140 x 75 x 35mm
Operating Temperature	-20°C to +60°C
Probe type range for steel, mm: Probe 10MHz – P112-10-2×3 Probe 10MHz – P112-10-6 / 2 Probe 5MHz – P112-5-10 / 2 Probe 2,5MHz – P112-2,5-12 / 2 Probe 2MHz – P112-2-20 / 2 Probe 1,25MHz – P112-1.25-20 / 2	0.4-15, 0.45-300, 0.8-500, 2.5-1000, 3-1200, 4-1500
Probe dimensions, mm: Probe 10MHz – P112-10-2×3, Probe 10MHz – P112-10-6 / 2, Probe 5MHz – P112-5-10 / 2, Probe 2,5MHz – P112-2,5-12 / 2, Probe 2MHz – P112-2-20 / 2, Probe 1,25MHz – P112-1.25-20 / 2	4×9×60, D12×15, D17×20, D20×21, D30×28, D30×35
Dimensions of probe contact area/crystal, mm: Probe 10MHz – P112-10-2×3, Probe 10MHz – P112-10-6 / 2, Probe 5MHz – P112-5-10 / 2, Probe 2,5MHz – P112-2,5-12 / 2, Probe 2MHz – P112-2-20 / 2, Probe 1,25MHz – P112-1.25-20 / 2	2×7/2×3, D9/D6, D14/D10, D16/D12, D24/D20, D24/D20
Optional probes: 5MHz high-temperature probe (echo) 10/2, 2,5MHz probe (echo-echo) 12/2 for through coating, 5MHz probe (echo-echo) 10/2 for through coating, 10MHz probe (echo-echo) 6/2 for through coating, 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable, 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable, 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable	range 0,8 – 300 mm, surface temperature up to 250 °С/482 °F range 6 – 30 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 2 – 12 mm, coating thickness range – up to 0,6 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm Compatible probe types Ultrasonic, dual-element, longitudinal waves (including probes of other manufacturers)
Compatible probe types	Ultrasonic, dual-element, longitudinal waves (including probes of other manufacturers)
Compatibility with Active EMAT Transducer EMAT-A1	No
Probe calibrations (V-path, TVG, etc.)	factory for NOVOTEST probes users for probes of other manufacturers
Probe cable connector type	2 Lemo 00
Probe cable length, m	1,2
Measurement scales	mm (m/s), inch (inch/μs)
Measurement resolution, mm/inch	0.01/0.001 (0.01/0.0001 by request)
Basic measurement accuracy, mm	± (0,01 T+0.05), (*For range 0.8 – 300 mm)
Gain range, dB	± 20
Response time, with no more than, s	1
Setting range of the ultrasonic velocity, m / s	1000-17000
Preset velocities for materials	Steel (8 different grades), Aluminum, Iron, Cast Iron, Zinc, Chromium, Copper, Brass, Bronze, Silver, Gold, Nickel, Tungsten, Tin, Lead, Molybdenum, Manganese, Magnesium, Rubber, Polystyrene, Plexiglas, Capron, Caprolon, ED-5, Ebonite, Porcelain, Teflon, Textolite, Silicate Glass, Acrylic glass, User
Operating modes	Normal, B-scan, Control mode
Standards	ASTM E797, EN 14127, EN15317
Body type / Dust and moisture protection level	Plastic, sealed, IP65, Optionally water immersion up to 1m deep for 30 min (IP67)
Calibration thickness block on the body	6 mm (Steel/~6080 m/s)
PC cable connection	Online – NOVOTEST.INFO/USB-connect, Offline – NOVOTEST USB-Connect
Wireless connection with Android gadgets via NOVOTEST Lab App	UT-1M-IP – No, UT-1M-IP (Lab) – Yes
Storage capacity of measurement results	UT-1M-IP – 128, UT-1M-IP (Lab) – 128 in the device + in NOVOTEST Lab App limited only by the memory of the Android gadgets
Measurement archives	Device menu, Android smartphone/tablet, Cloud storage/PC, PDF, Excel (CSV)
Menu languages	English, Spanish, Ukrainian, Russian (other languages optional)
Operating environment	Temperature:-20°C~50°C, Humidity: 30%~80%R.H.
Power supply	DC 4.5V (3 pcs standard batteries AA)
Time of continuous work hours, not less, h	up to 200
Charging	5V USB charger
Weight of electronic unit with batteries, no more, kg	0.2
Overall dimensions, mm	120x60x25
Package weight, kg	1.5
Package dimensions, cm	332710
Documents	Operation manual UT-1M-IP, Quick guide UT-1M/-IP, Brochure UT-1M/-2A
Country of origin	Made in Ukraine (Europe)
Warranty	Basic – 12 months for electronic unit – 6 months for probes Extended (optional) – up to 3 years

Applications

Offshore oil & gas platforms

Chemical processing plants

Marine vessel inspection

Power plant maintenance

Heavy industrial environments
