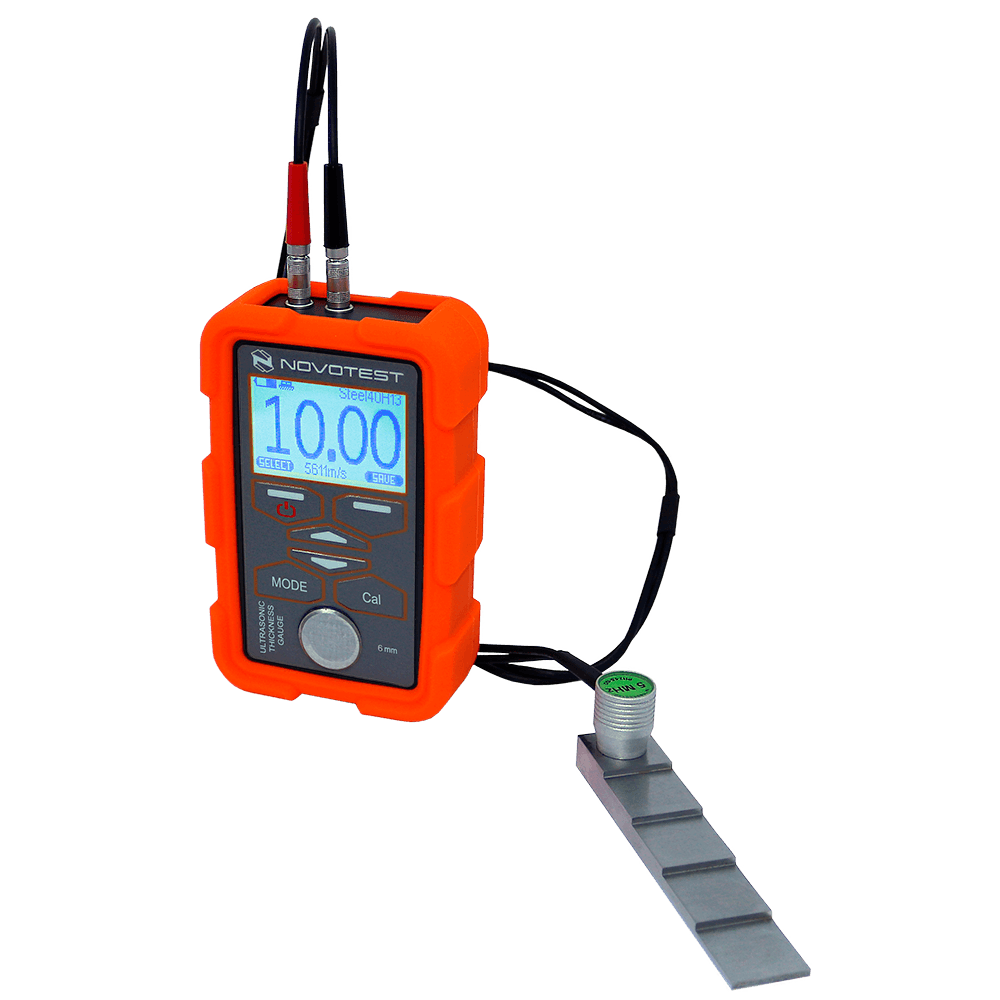

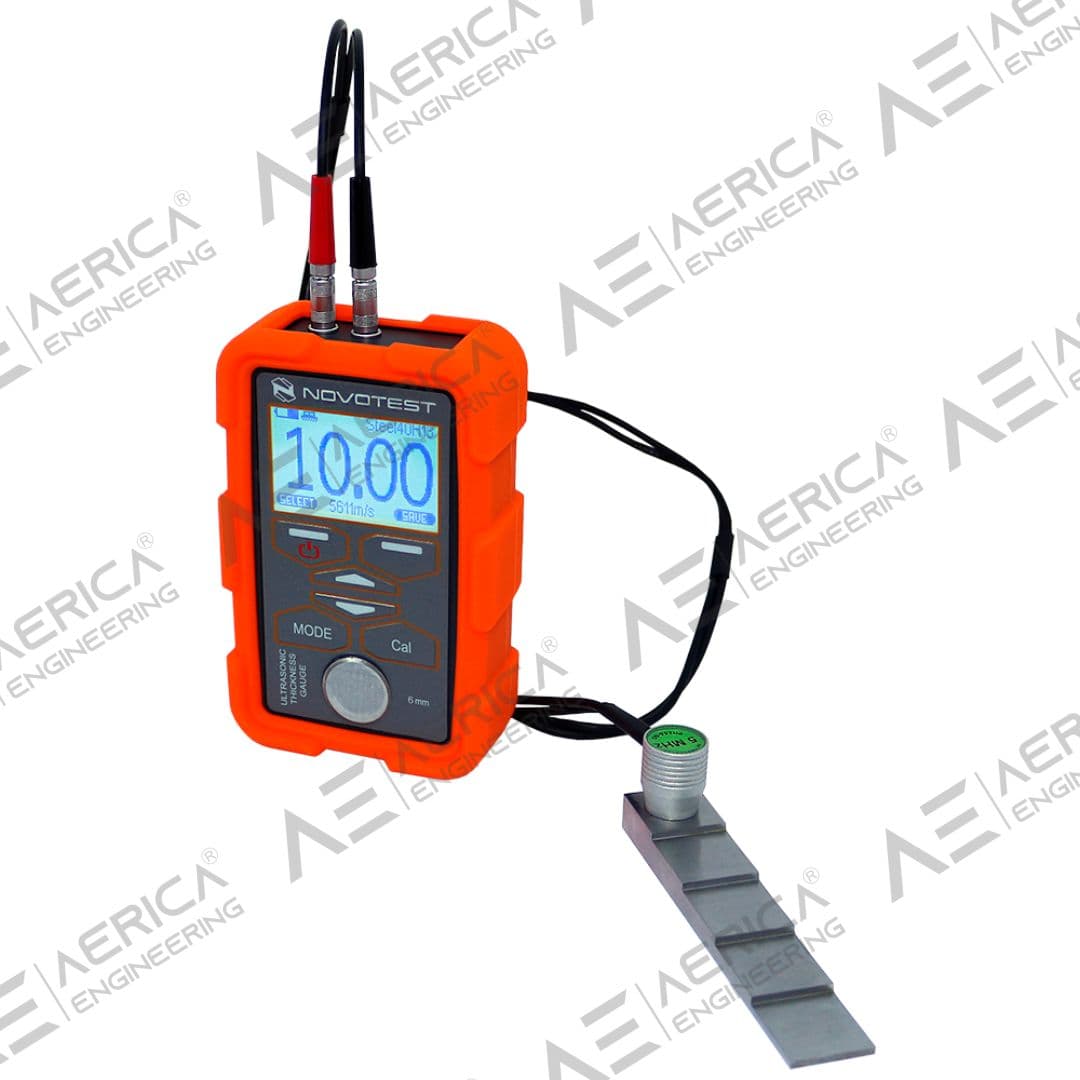

Ultrasonic Thickness Gauge NOVOTEST UT-1M

Industrial inspection equipment

Overview

Ultrasonic Thickness Gauge NOVOTEST UT-1M is used for operational non-destructive testing of the thickness of products with one-way access, at the moment this method is the most common in the world for solving such tasks.

Key Highlights

Wireless connection with Android gadgets via NOVOTEST Lab App (optionally with UT-1M (Lab) model only)
Wide measurement range (0.4 to 1500 mm and more depending on material and surfaces)
Available probes 1.25-10 MHz:
– 1.25MHz probe (echo) 20/2 for substantial thicknesses or materials with exceptionally high signal attenuation
– 2.0MHz probe (echo) 20/2 for large thicknesses or materials with high signal attenuation
– 2.5MHz probe (echo) 12/2 for thick samples
– 5MHz probe (echo) 10/2 for a wide range of basic samples
– 10MHz probe (echo) 6/2 for thin samples
– 10MHz probe (echo) 2х3 for products of complex shapes usually turbine blades
– 5MHz high-temperature probe (echo) 10/2 for heated samples up to 250 °С/482 °F
– 2.5MHz probe (echo-echo) 12/2 for through coating
– 5MHz probe (echo-echo) 10/2 for through coating
– 10MHz probe (echo-echo) 6/2 for through coating
– 5MHz probe (echo-echo) 10/2 for through coating underwater 10 m cable
– 5MHz probe (echo-echo) 10/2 for through coating underwater 20 m cable
– 5MHz probe (echo-echo) 10/2 for through coating underwater 30 m cable
Gain adjustment (±20 Db)
Preset velocities for many materials
B-scan and control modes
Through-coating (echo-echo) mode
Threshold setting with automatic alarm
Saving the settings for different probes
Compatibility with probes of other manufacturers
V-path correction and TVG adjusting for the user’s probes
Measurement storage and PC software
PC cable connection:
– Online – NOVOTEST.INFO/USB-connect
– Offline – NOVOTEST USB-Connect
Wireless connection with Android gadgets via NOVOTEST LAB App (only for UT-1M (Lab))
Shockproof ergonomic housing
Multi-language menu
Convenience and ease of operation
Minimum number of controls
Select the type of probe through single button
Graphical display with backlight
Compensation of probe delay
Control of the batteries
Mapping the presence of acoustic coupling on the graphic display
Fixation of the last measurement results in the removal of the transducer surface
Availability of a wide range of accessories

Request a Quote

Get pricing, availability, and technical guidance.

Request Quote

Response within 1 business day.

Technical Specifications

Measurement Range	0.8-300mm (steel)
Accuracy	±0.1mm or ±1% (whichever is greater)
Resolution	0.01mm or 0.1mm
Display	LCD with backlight
Probe Frequency	5 MHz standard
Power Supply	2 x AA batteries
Operating Time	200+ hours
Weight	150g (with batteries)
Dimensions	120 x 65 x 28mm
Operating Temperature	-10°C to +50°C
Probe type range for steel, mm: Probe 10MHz – P112-10-2×3, Probe 10MHz – P112-10-6 / 2, Probe 5MHz – P112-5-10 / 2, Probe 2,5MHz – P112-2,5-12 / 2, Probe 2MHz – P112-2-20 / 2, Probe 1,25MHz – P112-1.25-20 / 2	0.4-15, 0.45-300, 0.8-500, 2.5-1000, 3-1200, 4-1500,
Probe dimensions, mm: Probe 10MHz – P112-10-2×3, Probe 10MHz – P112-10-6 / 2, Probe 5MHz – P112-5-10 / 2, Probe 2,5MHz – P112-2,5-12 / 2, Probe 2MHz – P112-2-20 / 2, Probe 1,25MHz – P112-1.25-20 / 2	4×9×60, D12×15, D17×20, D20×21, D30×28, D30×35
Dimensions of probe contact area/crystal, mm: Probe 10MHz – P112-10-2×3, Probe 10MHz – P112-10-6 / 2, Probe 5MHz – P112-5-10 / 2, Probe 2,5MHz – P112-2,5-12 / 2, Probe 2MHz – P112-2-20 / 2, Probe 1,25MHz – P112-1.25-20 / 2	2×7/2×3, D9/D6, D14/D10, D16/D12, D24/D20, D24/D20
Optional probes: 5MHz high-temperature probe (echo) 10/2 2,5MHz probe (echo-echo) 12/2 for through coating 5MHz probe (echo-echo) 10/2 for through coating 10MHz probe (echo-echo) 6/2 for through coating 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable	>range 0,8 – 300 mm, surface temperature up to 250 °С/482 °F >range 6 – 30 mm, coating thickness range – up to 1 mm >range 3,5 – 26 mm, coating thickness range – up to 1 mm >range 2 – 12 mm, coating thickness range – up to 0,6 mm >range 3,5 – 26 mm, coating thickness range – up to 1 mm >range 3,5 – 26 mm, coating thickness range – up to 1 mm >range 3,5 – 26 mm, coating thickness range – up to 1 mm
Compatible probe types	Ultrasonic, dual-element, longitudinal waves (including probes of other manufacturers)
Compatibility with Active EMAT Transducer EMAT-A1	No
Probe calibrations (V-path, TVG, etc.)	factory for NOVOTEST probes, users for probes of other manufacturers

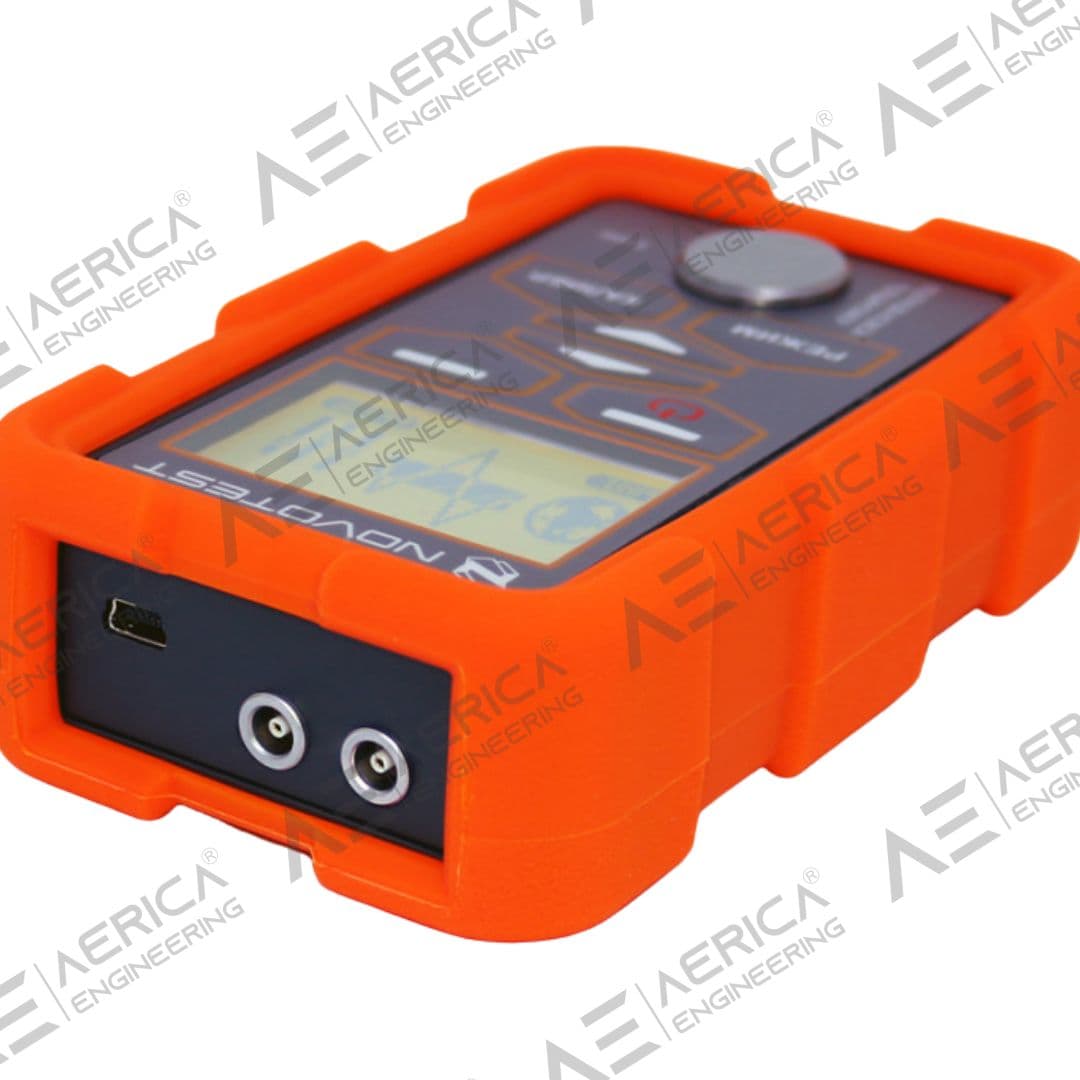

Probe cable connector type	2 Lemo 00
Probe cable length, m	1,2
Measurement scales	mm (m/s), inch (inch/μs)
Measurement resolution, mm/inch	0.01/0.001, (0.01/0.0001 by request)
Basic measurement accuracy, mm	± (0,01 T+0.05) (*For range 0.8 – 300 mm)
Gain range, dB	± 20
Response time, with no more than, s	1
Setting range of the ultrasonic velocity, m / s	1000-17000
Preset velocities for materials	Steel (8 different grades), Aluminum, Iron, Cast Iron, Zinc, Chromium, Copper, Brass, Bronze, Silver, Gold, Nickel, Tungsten, Tin, Lead, Molybdenum, Manganese, Magnesium, Rubber, Polystyrene, Plexiglas, Capron, Caprolon, ED-5, Ebonite, Porcelain, Teflon, Textolite, Silicate Glass, Acrylic glass, User
Device menu modes	Measurement, Calibration, Archive, Memory card, Information
Operating modes	Normal, B-scan, Control mode
Standards	ASTM E797, EN 14127, EN15317
Body type / Dust and moisture protection level	Plastic, with shockproof silicone case, Standard for shop and field operation, IP54
Calibration thickness block on the body	6 mm (Steel/~6080 m/s)
PC cable connection	Online – NOVOTEST.INFO/USB-connect Offline – NOVOTEST USB-Connect
Wireless connection with Android gadgets via NOVOTEST Lab App	UT-1M – No, UT-1M (Lab) – Yes
Storage capacity of measurement results	UT-1M – 128, UT-1M (Lab) – 128 in the device + in NOVOTEST Lab App limited only by the memory of the Android gadgets
Measurement archives	Device menu, Android smartphone/tablet, Cloud storage/PC, PDF, Excel (CSV)
Menu languages	English, Spanish, Ukrainian, Russian (other languages optional)
Operating environment	Temperature:-20°C~40°C Humidity: 30%~80%R.H.
Power supply	DC 3V (2 pcs standard batteries AA)
Time of continuous work hours, not less, h	25
Charging	External charger for 2pcs AA batteries
Weight of electronic unit with batteries, no more, kg	0.25
Overall dimensions, mm	120x60x25
Package weight, kg	1.5
Package dimensions, cm	332710
Documents	Operation manual UT-1M, Quick guide UT-1M, Brochure UT-1M/-2A
Country of origin	Made in Ukraine (Europe)
Warranty	Basic: – 12 months for electronic unit, – 6 months for probes, Extended (optional) – up to 3 years

Applications

Corrosion monitoring in pipelines

Tank and vessel wall thickness measurement

Quality control in manufacturing

Maintenance inspection

Material verification
