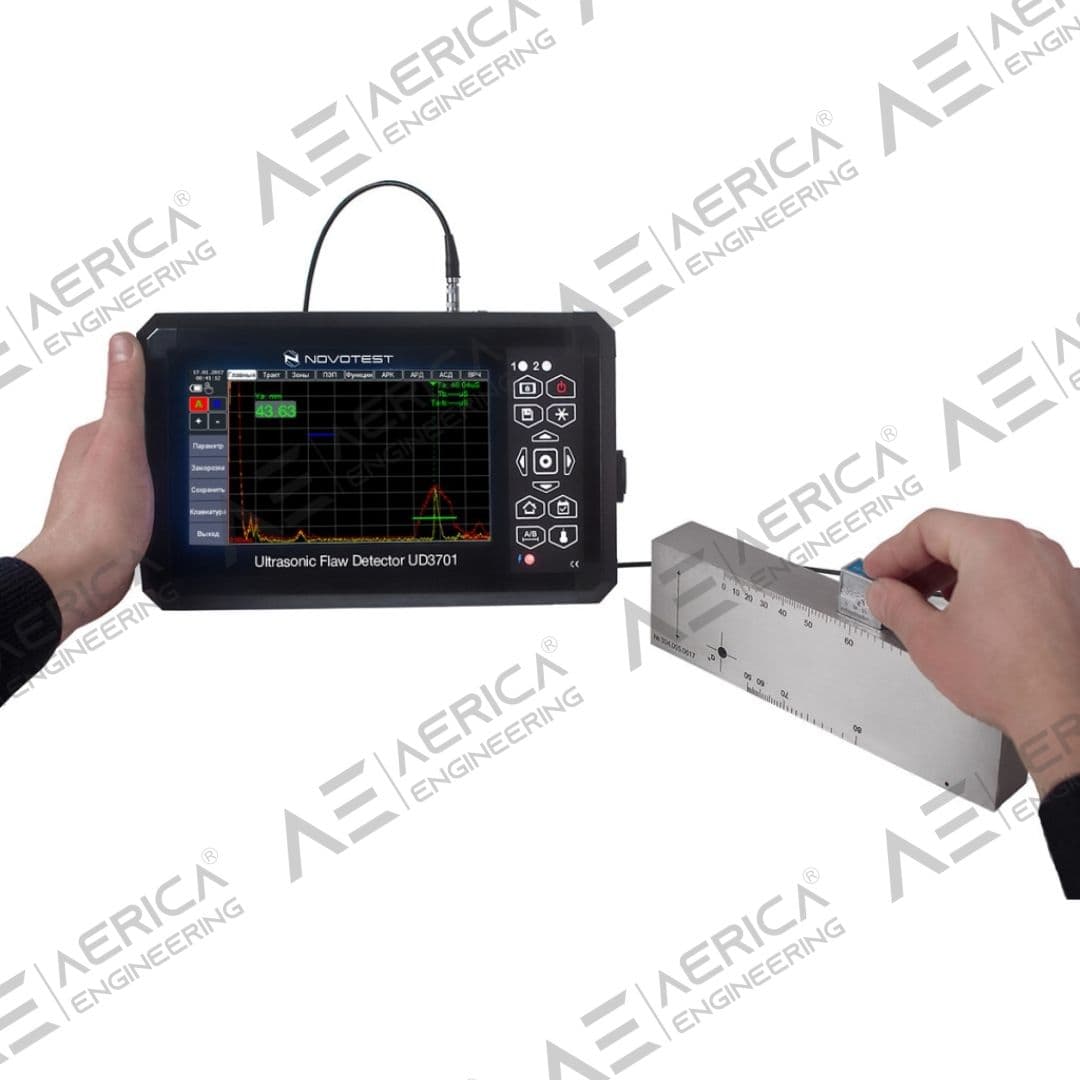

Ultrasonic Flaw Detector NOVOTEST UD3701
Industrial inspection equipment
Overview

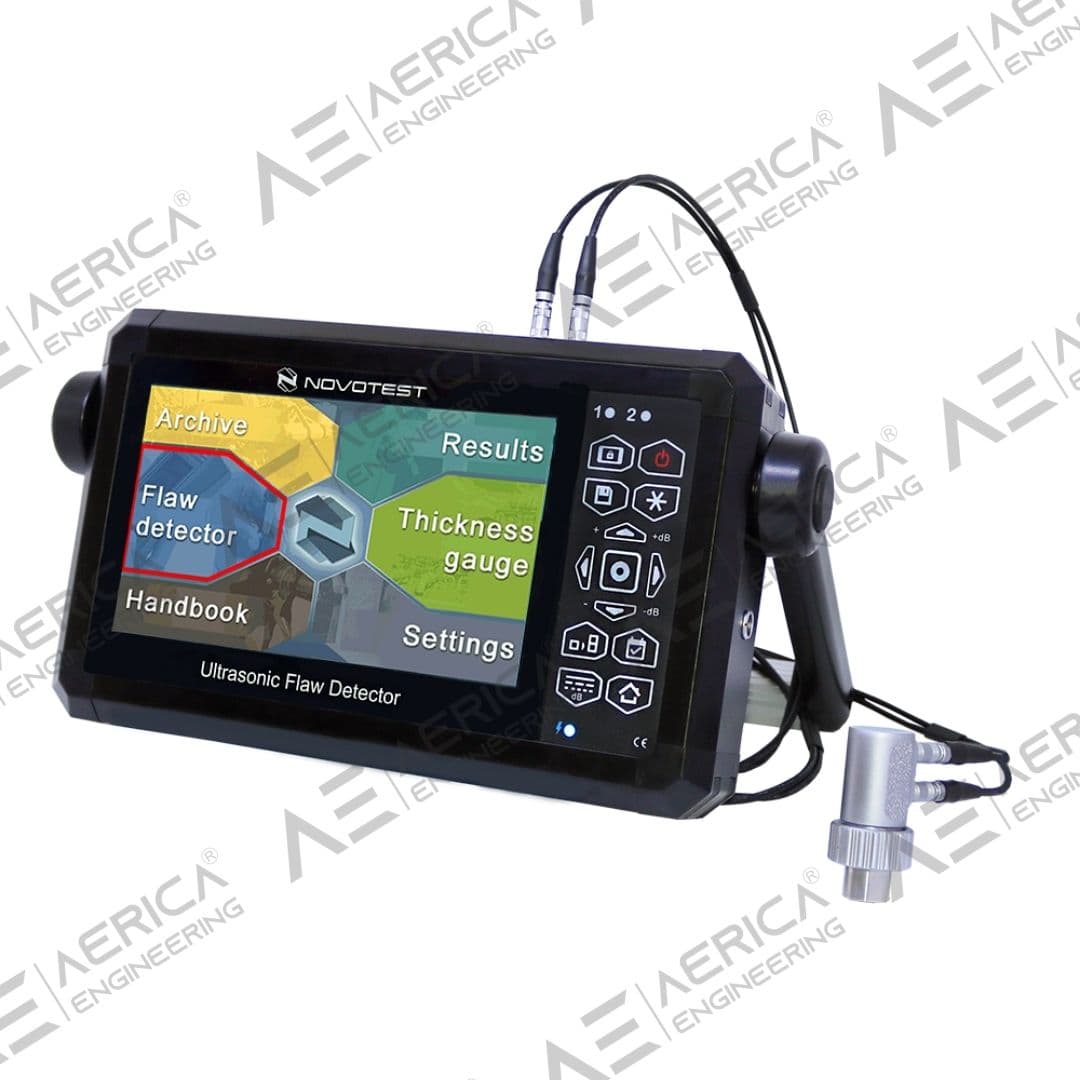

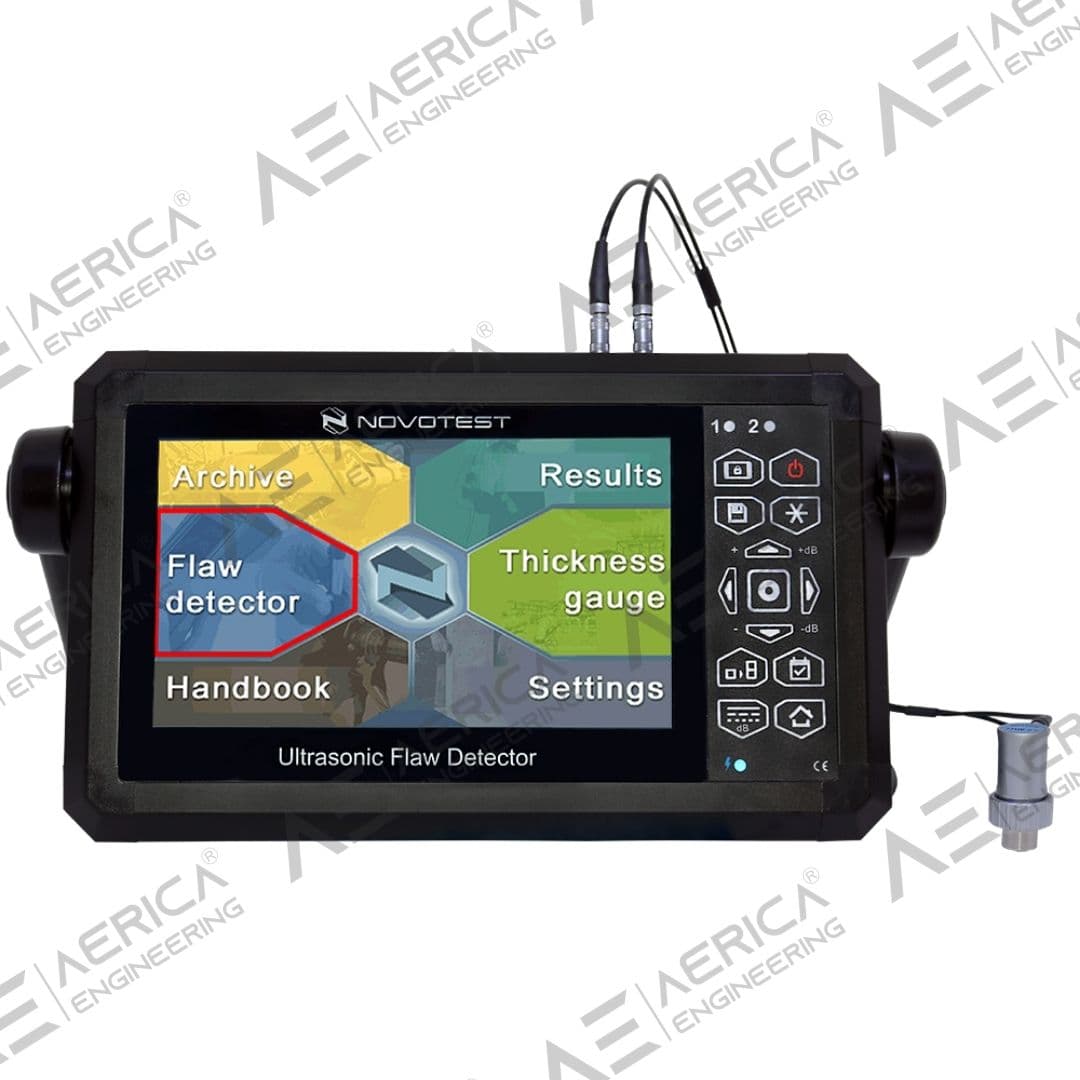

The top version of the ultrasonic flaw detector with a large touchscreen display for convenient work in the laboratory or workshop. It has a wide functionality and high performance.
Key Highlights
- Superbright
- touch display with which it is comfortable to work outdoors on a sunny day;
- Automatic calculation of the delay in the probe;
- Frequency range from 0 to 10 MHz with smooth adjustment;
- Display of a scale of scanning in microseconds and millimeters;

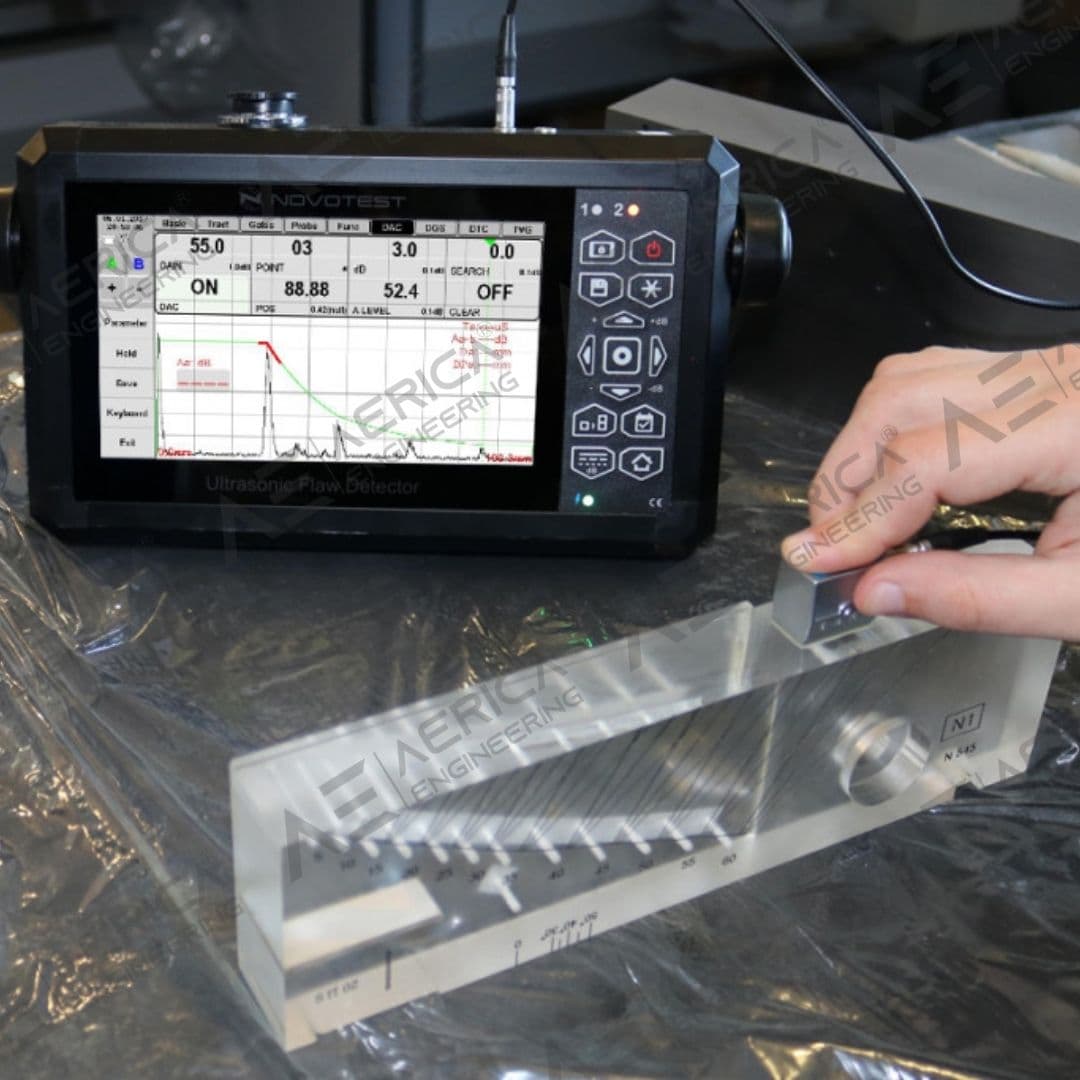

- The presence in the device of the operating mode of the DAC and TVG curves (up to 16 points);
- The presence in the flaw detector of the DGS control mode with automatic calculation of the equivalent reflector zone;
- Carrying out settings both using the touch screen and by keyboard;
- The presence of movable blocks of output of measured values so it can be located in any part of the A-scan;
- Archive of measurements settings probes with the ability to transfer data to a PC;
- Simulation of a measurement from a stored record in the device memory.
Request a Quote
Get pricing, availability, and technical guidance.
Request QuoteResponse within 1 business day.
Technical Specifications
| Channels | 16-64 channels |
| Frequency Range | 0.5-20 MHz |
| Display Type | 10.1" touchscreen color display |
| Measurement Range | 0-15000 mm (steel) |
| Power Supply | AC adapter / Rechargeable battery |
| Operating Time | 6-8 hours continuous |
| Weight | 3.5 kg |
| Dimensions | 320 x 240 x 80 mm |
| Operating frequency range | 1 – 10 MHz |
| Range of measured time intervals (duration of scanning) | from 6 to 1000 µs |
| Velocity range | 1000 – 9999 m/s |
| Error of measurement of time intervals | not exceed ± 0,025 µs |
| Maximum permissible error of measurement of the amplitudes of the signals at the receiver input in the range from 0 to 110 dB | not exceed ± 0,5 dB |
| Testing gain range | 125 dB |
| Averaging over the quantity of starts | from 1 to 16 |
| Range of variation of temporal sensitivity adjustment (TVG) | 40 dB |
| Number of control points TVG | 16 |
| Duration of the excitation pulse to the load | from 0,0 to 0,5 µs |
| Deviation of the amplitudes of input signals in the range from 10 to 100% of the screen height not more than | 1 dB |
| Setting a delay in the prism of the probe | from 0 to 15 µs |
| Detection of signals | positive half-wave, radio mode |
| Standards | EN 12668, ASTM E1324, EN 55011, EN61000-6-2:2001, EN 61010-1:2014 (EN 61010-1:2010), EN 60529:2014, EN ISO 16810:2016, SOU NNEC 027:2014, SOU NNEC 032:2014, SOU NNEC 038:2017, |
| Dimensions (W*H*L) | 140 mm x 210 mm x 55 mm |
| Weight, not more | 1,5 kg |
| Package | Weight, not more – 4,5kg Dimensions – 40*25*9cm |
Applications

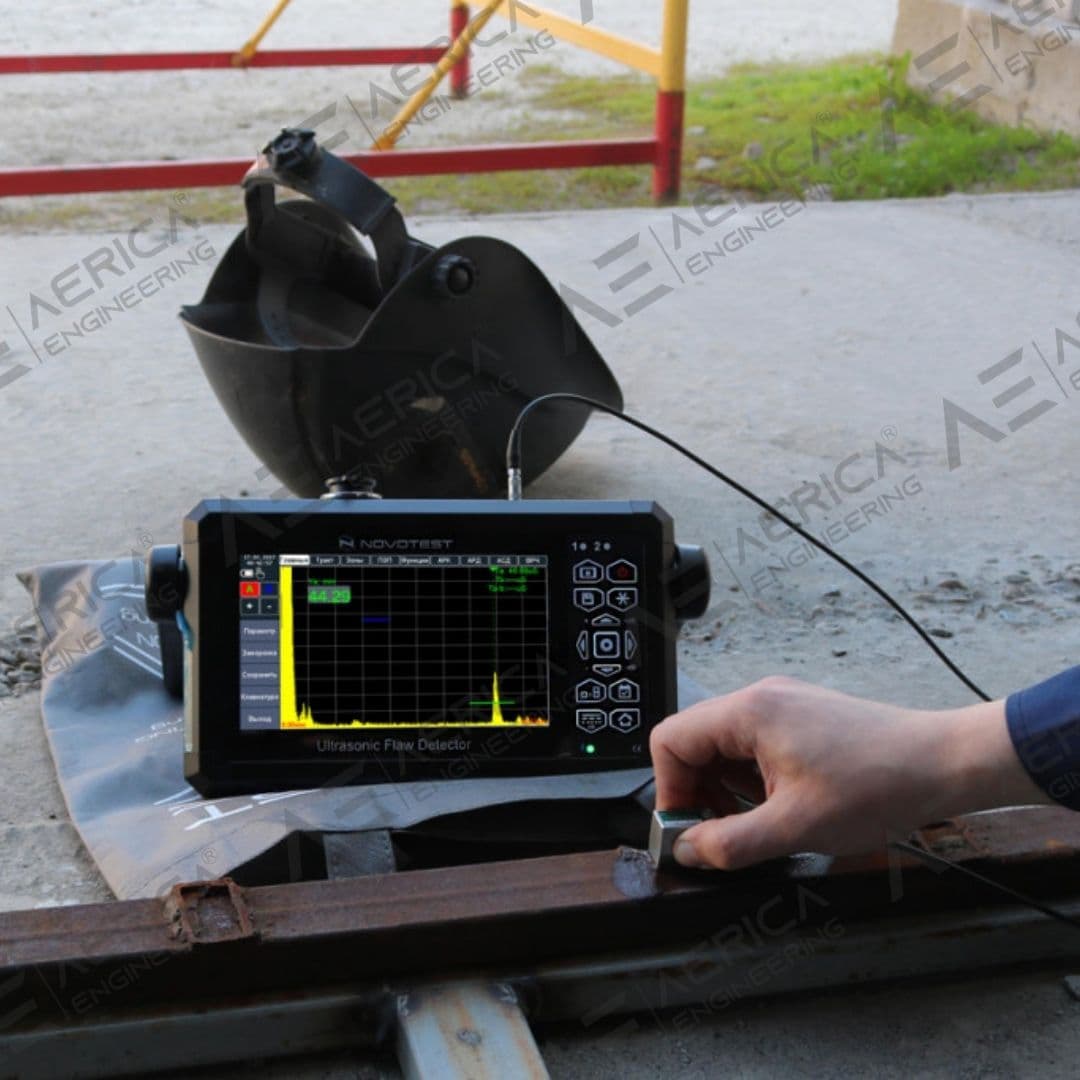

Complex weld inspection in critical structures

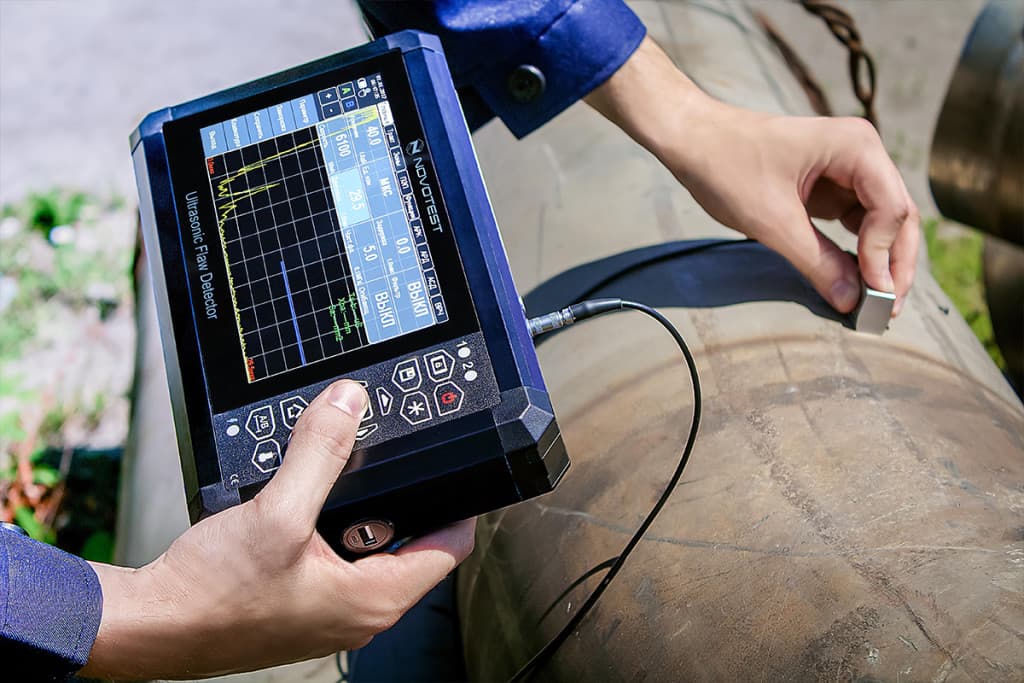

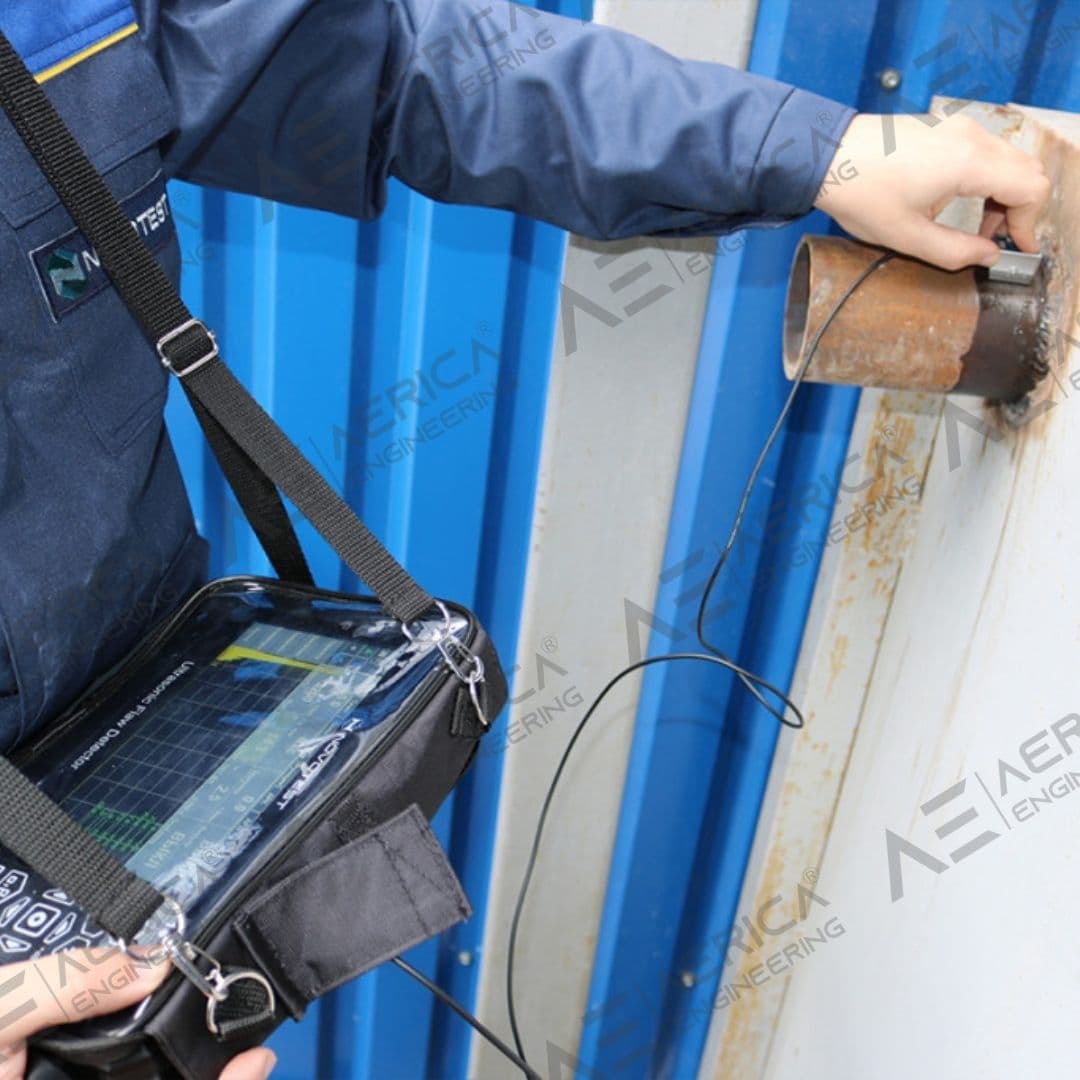

Corrosion mapping in pipelines
Composite material inspection
Nuclear power plant component testing
Aerospace structural integrity assessment
