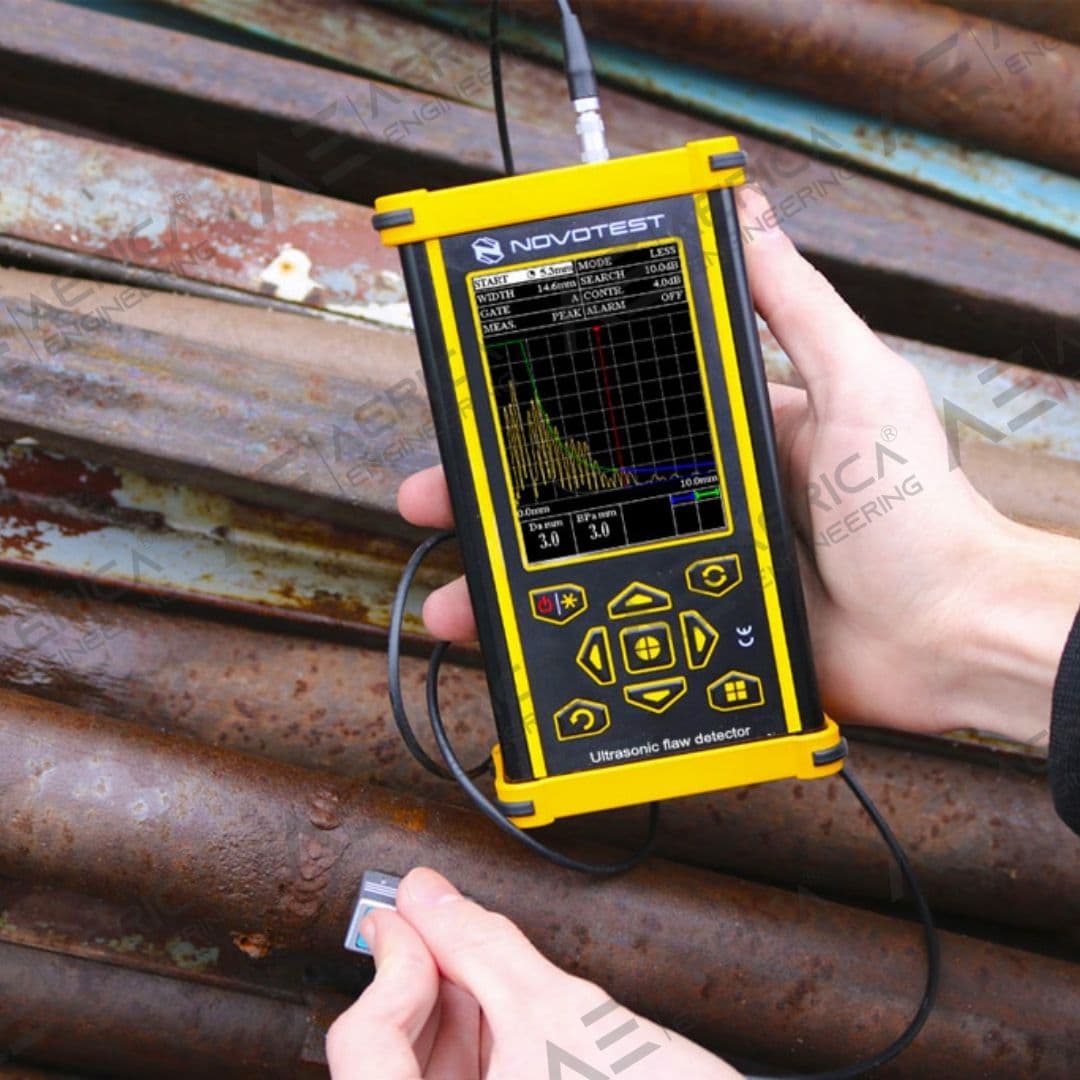

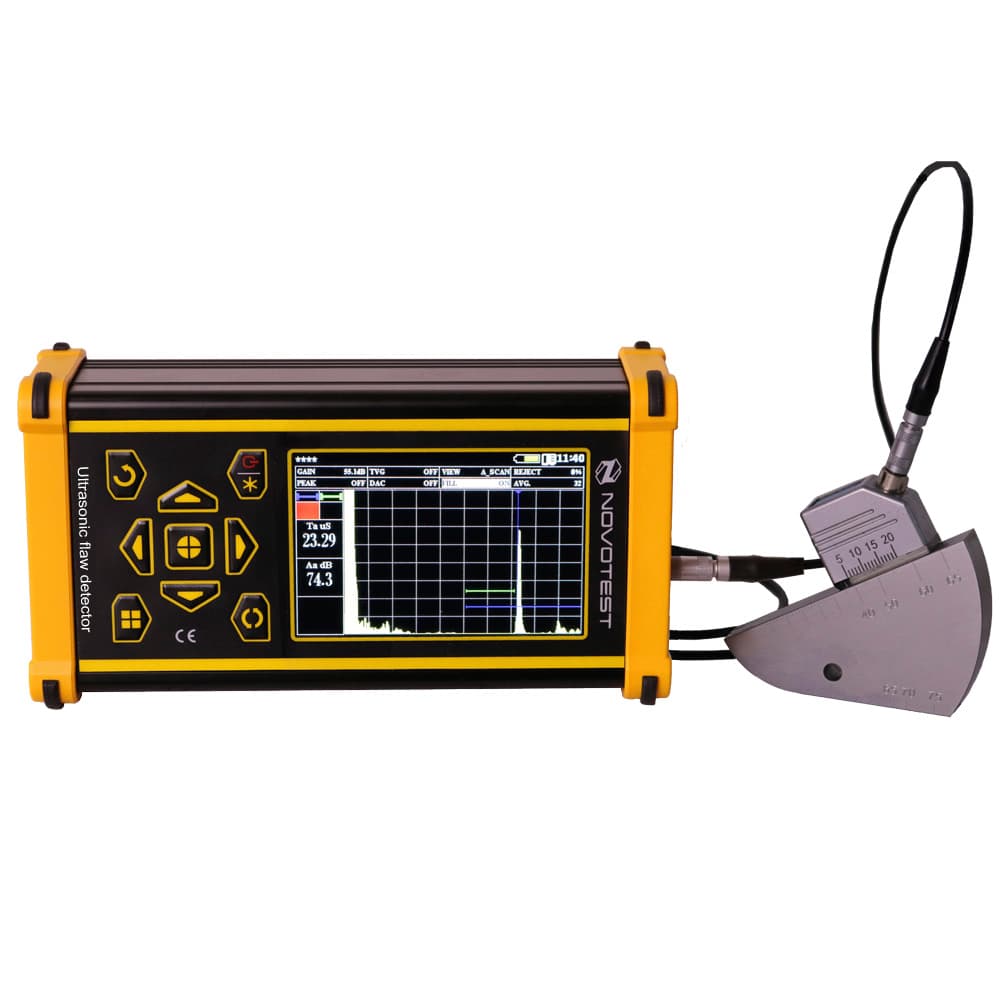

Ultrasonic Flaw Detector NOVOTEST UD2303
Industrial inspection equipment
Overview
Compact flaw detector offers essential functions for simplifying product quality control, housed in a shock-resistant aluminum alloy case with a long-lasting battery for durability in tough conditions.
Key Highlights
- Automatic calibration
- Intuitive device menu
- Adjustable excitation pulse generator
- Saving measurement results and ability to viewing
- Transfer of archived records to PC
Request a Quote
Get pricing, availability, and technical guidance.
Request QuoteResponse within 1 business day.
Technical Specifications
| Frequency Range | 0.5-15 MHz |
| Display Type | 5.7" color TFT |
| Measurement Range | 0-12000 mm (steel) |
| Power Supply | Built-in Li-ion Battery |
| Operating Time | 10-12 hours continuous |
| Weight | 1.8 kg |
| Dimensions | 240 x 160 x 60 mm |
| Operating Temperature | -20°C to +50°C |
| Operating frequency range | from 1 to 10,0 MHz |
| Range of measured time intervals (duration of scanning) | from 6 to 1000 µs |
| Velocity range | 1000 – 9999 m / s |
| Error of measurement of time intervals | not exceed ± 0,025 µs |
| Maximum permissible error of measurement of the amplitudes of the signals at the receiver input in the range from 0 to 110 dB | not exceed ± 0,5 dB |
| Pulse duration | 0.1 – 0.5 µs |
| Testing gain range | 126 dB |
| Averaging over the quantity of starts | from 1 to 128 |
| Range of variation of temporal sensitivity adjustment (TVG) | 1-40 dB |
| Number of control points TVG | 16 |
| Duration of the excitation pulse to the load | from 12.5 to 0,5 µs |
| Scan range | from 8 up to 250 μs (500 and more by special order) or from 0,48mm up to 1500mm (in Steel V=6000m/s) (3000m and more by special order) |
| Sweep delay range | from 0 up to 1000 μs |
| Measurement range of time intervals | from 8 up to 250 μs (500 and more by special order) |
| Setting the delay in the prism of the transducer | from 0 up to 15 μs |
| Deviation of the amplitudes of input signals in the range from 10 to 100% of the screen height not more than | 1 dB |
| Setting a delay in the prism of the probe | from 0 to 15 µs |
| Automatic signaling of defects (ASD) | Two-zone |
| Detection of signals | positive half-wave, radio mode |
| Operating modes | DAC, TVG, DGS, AWS, AFS, ASD |
| Menu language | English, Russian |
| Dimensions (W*H*L) | 165x90x50 mm |
| Time of continuous work, not less than, h | 8 |
| Operating temperature range for the electronic unit, ° C | -20 to +40 |
| Air moisture, no more | 98 %, at 35 °С |
| Weight, not more | 500 g |
Applications
Advanced weld inspection and analysis
Aerospace component testing
Power plant equipment inspection
Railway component examination
Petrochemical facility maintenance
