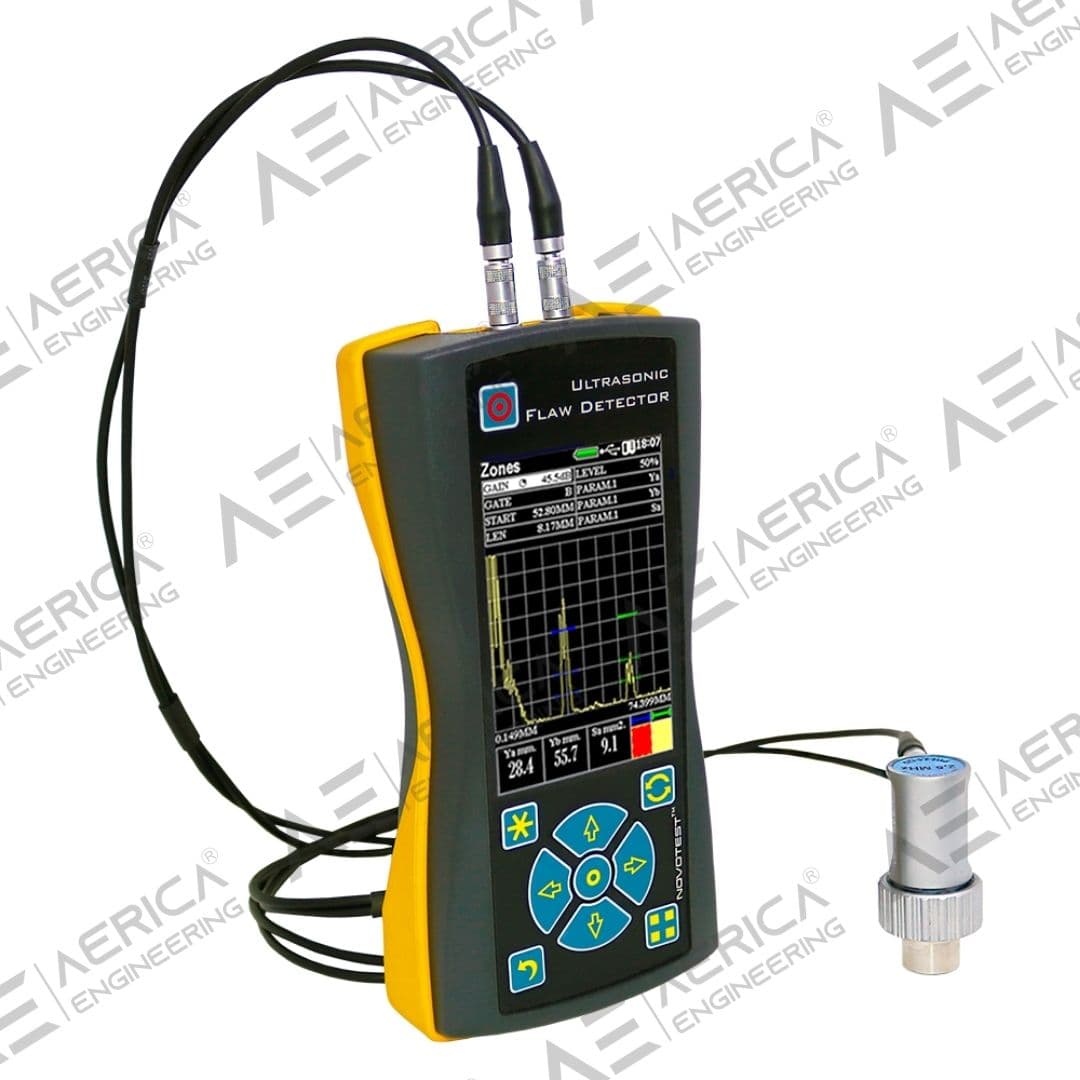

Ultrasonic Flaw Detector NOVOTEST UD2301
Industrial inspection equipment

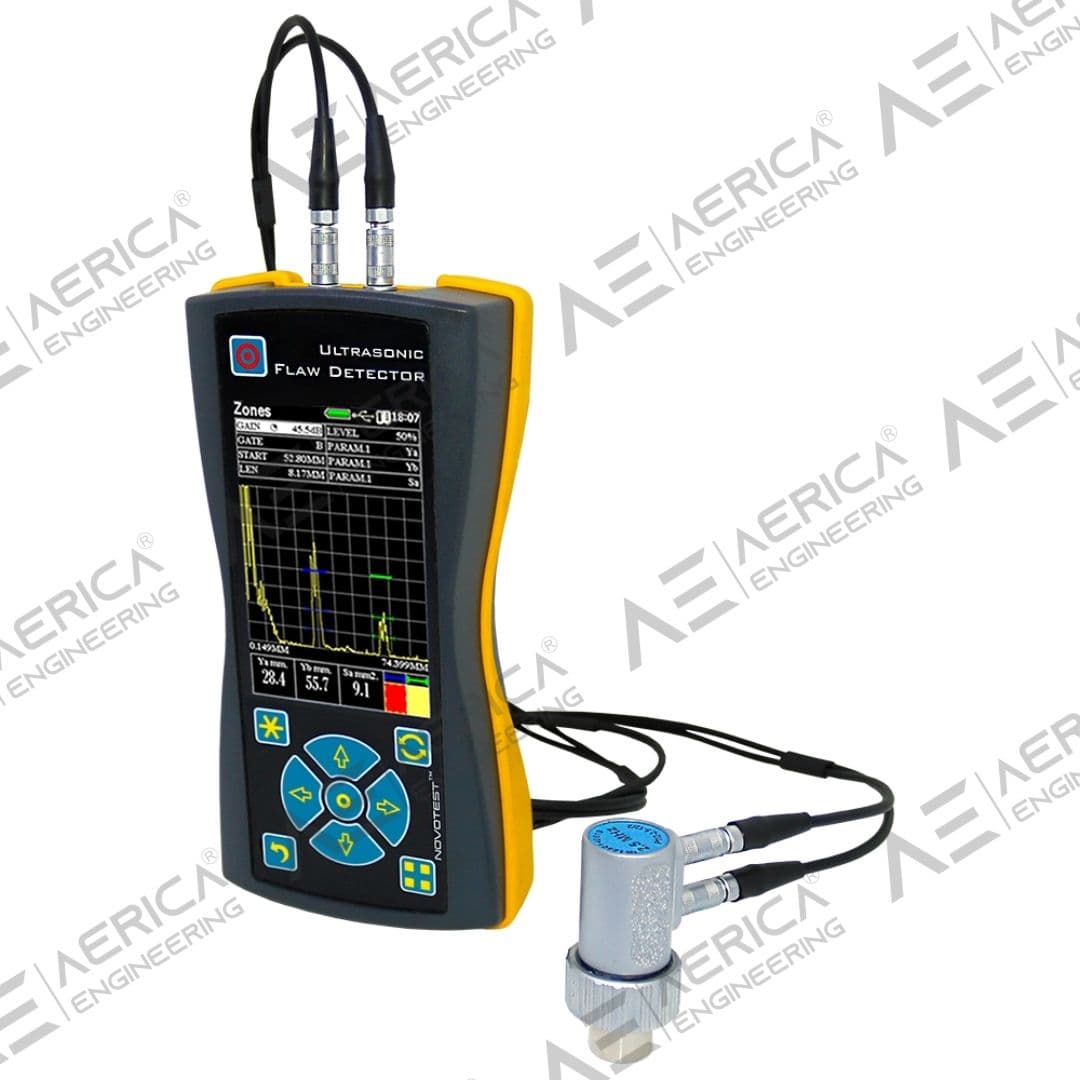

Overview
An ultrasonic flaw detector is a powerful, portable device used for non-destructive testing to detect voids and inhomogeneities in materials, this device is ideal for both production and field applications.
Key Highlights
- Superbright display with which it is comfortable to work outdoors on a sunny day;
- Frequency range from 0 to 10 MHz with smooth adjustment;
- Display of a scale of scanning in microseconds and millimeters;
- Construction and processing A-scan and B-scan;
- The presence in the device of the operating mode of the DAC curves (construction of 16 points);
- Existence in the device of TVG mode (construction of 16 points);
- DGS function with automatic calculation of the equivalent reflector size;
- Archive of measurements settings transducers with the ability to transfer data to a PC;
- Any side display orientation options that allow user to work in any position of the device;
- The device operates on standard AA batteries as well as on conventional batteries which makes them easy to replace;
- The NOVOTEST UD2301 flaw detector can be powered by a universal mobile battery (power bank) via a mini USB connector;
- Ergonomic shockproof case with protective rubber protectors;
- Light weight and compact size.
Request a Quote
Get pricing, availability, and technical guidance.
Request QuoteResponse within 1 business day.
Technical Specifications
| Frequency Range | 1-10 MHz |
| Display Type | LCD monochrome |
| Measurement Range | 0-10000 mm (steel) |
| Power Supply | Rechargeable Li-ion battery |
| Operating Time | 8-10 hours continuous |
| Weight | 1.2 kg |
| Dimensions | 220 x 110 x 45 mm |
| Operating Temperature | -10°C to +50°C |
| Frequency range | from 1 to 10,0 MHz |
| Display | LCD monochrome |
| Velocity range | 1000 – 9999 m/s |
| Error of measurement of time intervals | not exceed ± 0,025 µs |
| Maximum permissible error of measurement of the amplitudes of the signals at the receiver input in the range from 0 to 110 dB | not exceed ± 0,5 dB |
| Testing gain range | 125 dB |
| Averaging over the quantity of starts | from 1 to 16 |
| Range of variation of temporal sensitivity adjustment (TVG) | 40 dB |
| Number of control points TVG | 16 |
| Duration of the excitation pulse to the load | from 0,0 to 0,5 µs |
| Deviation of the amplitudes of input signals in the range from 10 to 100% of the screen height not more than | 1 dB |
| Setting a delay in the prism of the probe | from 0 to 15 µs |
| Detection of signals | positive half-wave, radio mode |
| Standards | EN 12668, ASTM E1324, EN 55011, EN61000-6-2:2001, EN 61010-1:2014 (EN 61010-1:2010), EN 60529:2014, EN ISO 16810:2016, SOU NNEC 027:2014, SOU NNEC 032:2014, SOU NNEC 038:2017, |
| Dimensions (W*H*L) | 80*162*38 mm |
| Weight, not more | 250 g (without batteries) |

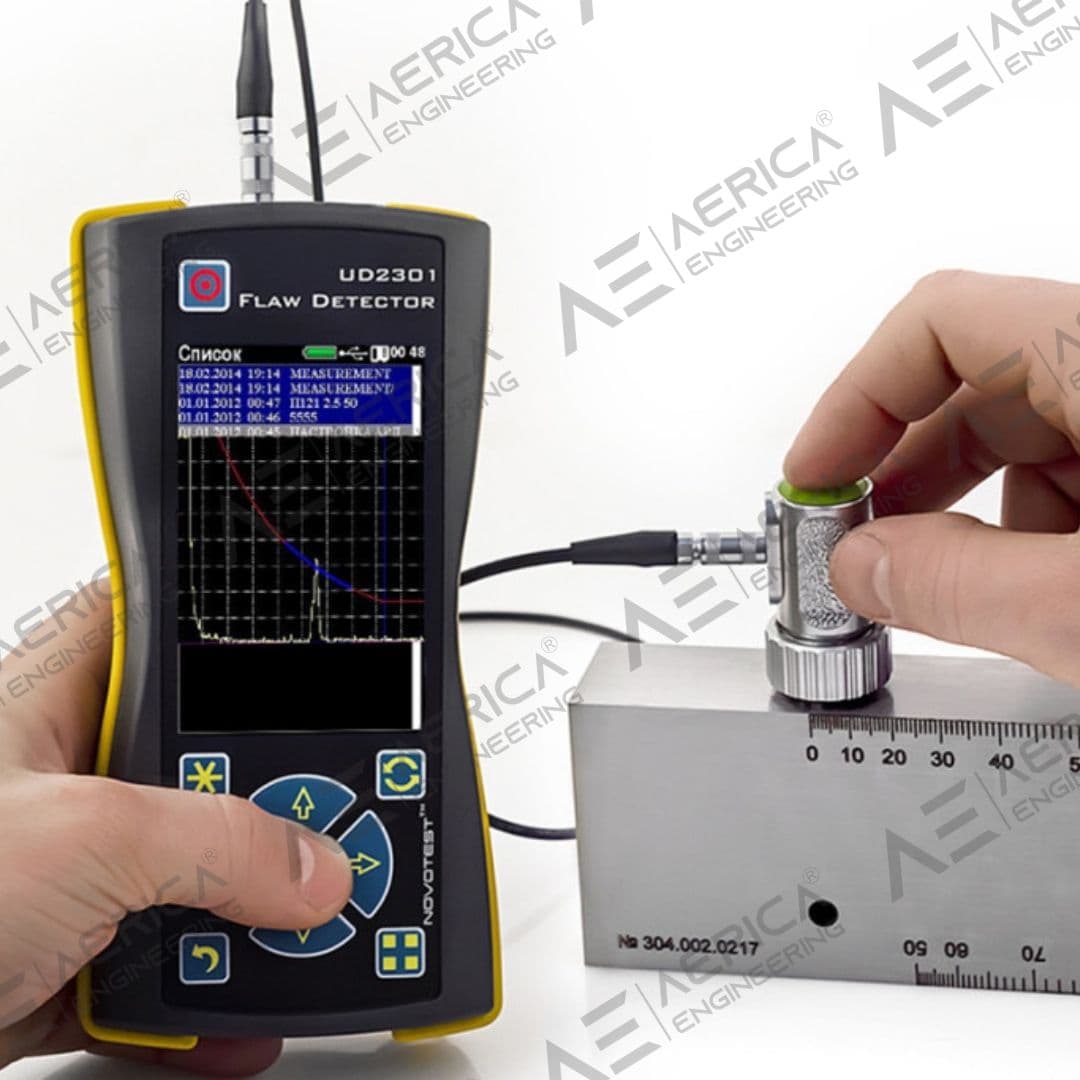

Applications

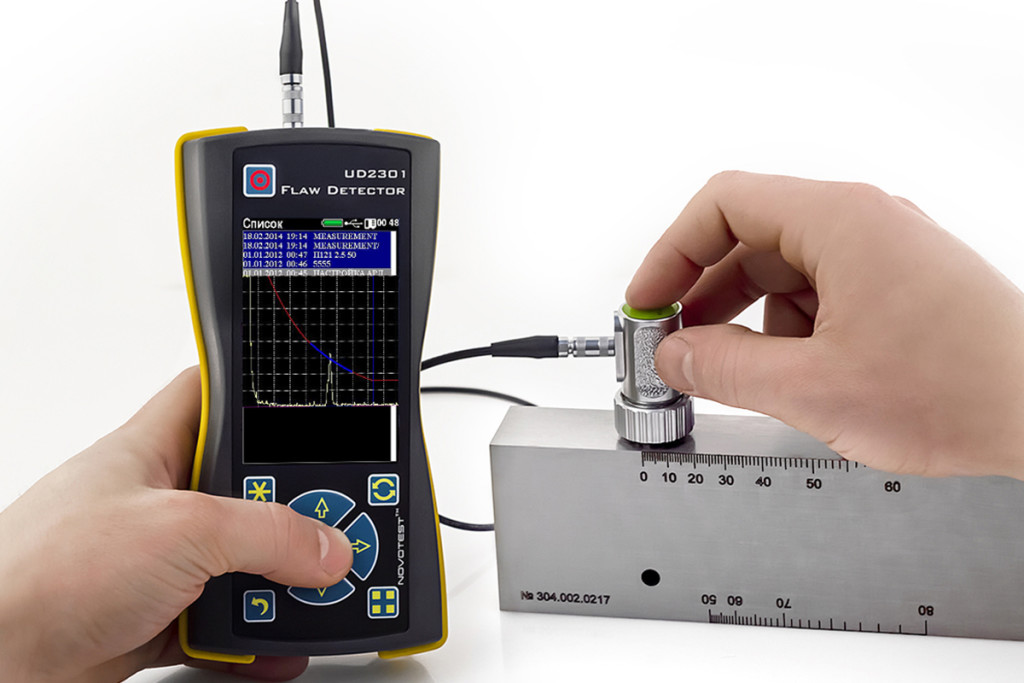

A unique screen orientation function is implemented in the Ultrasonic Flaw Detector NOVOTEST UD2301
depending on the conditions under which the testing is performed
the screen orientation can be either vertical or horizontal. Also
the screen can be configured for both right-handed and left-handed people
i.e. the screen can be rotated 360°.
