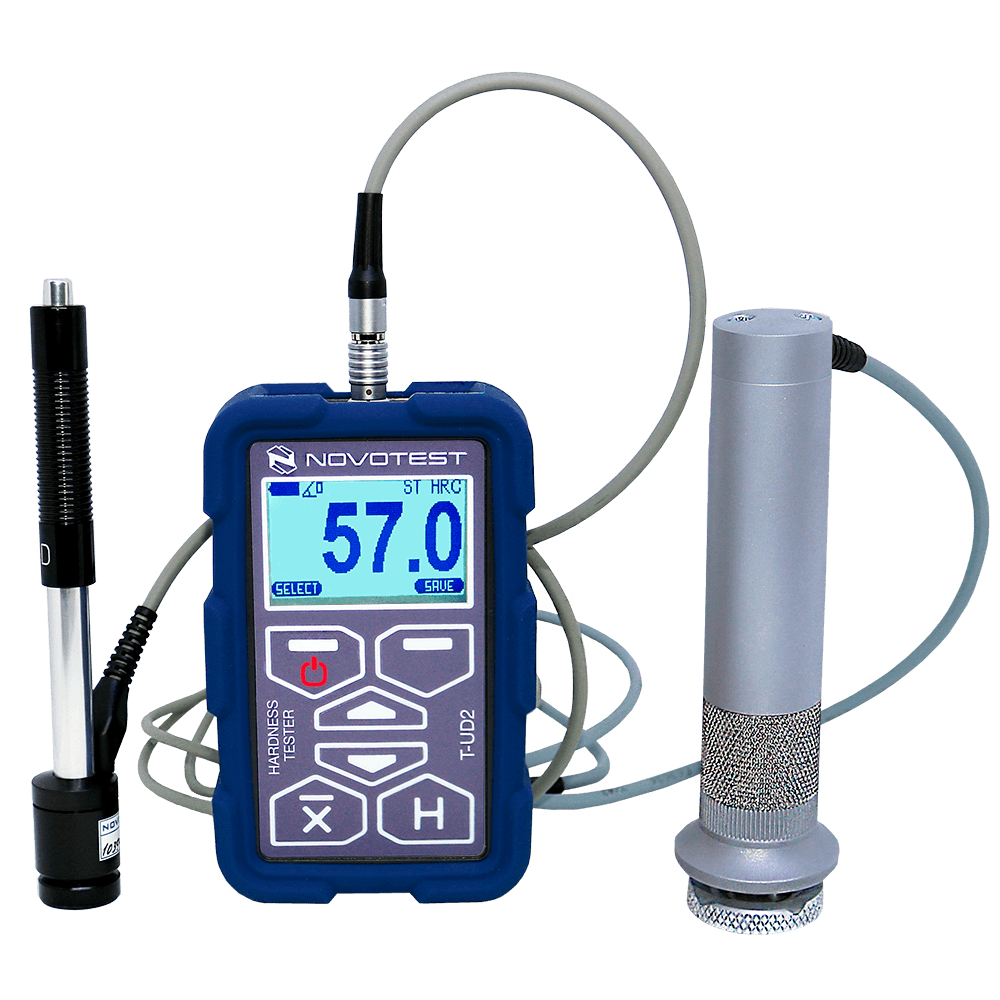

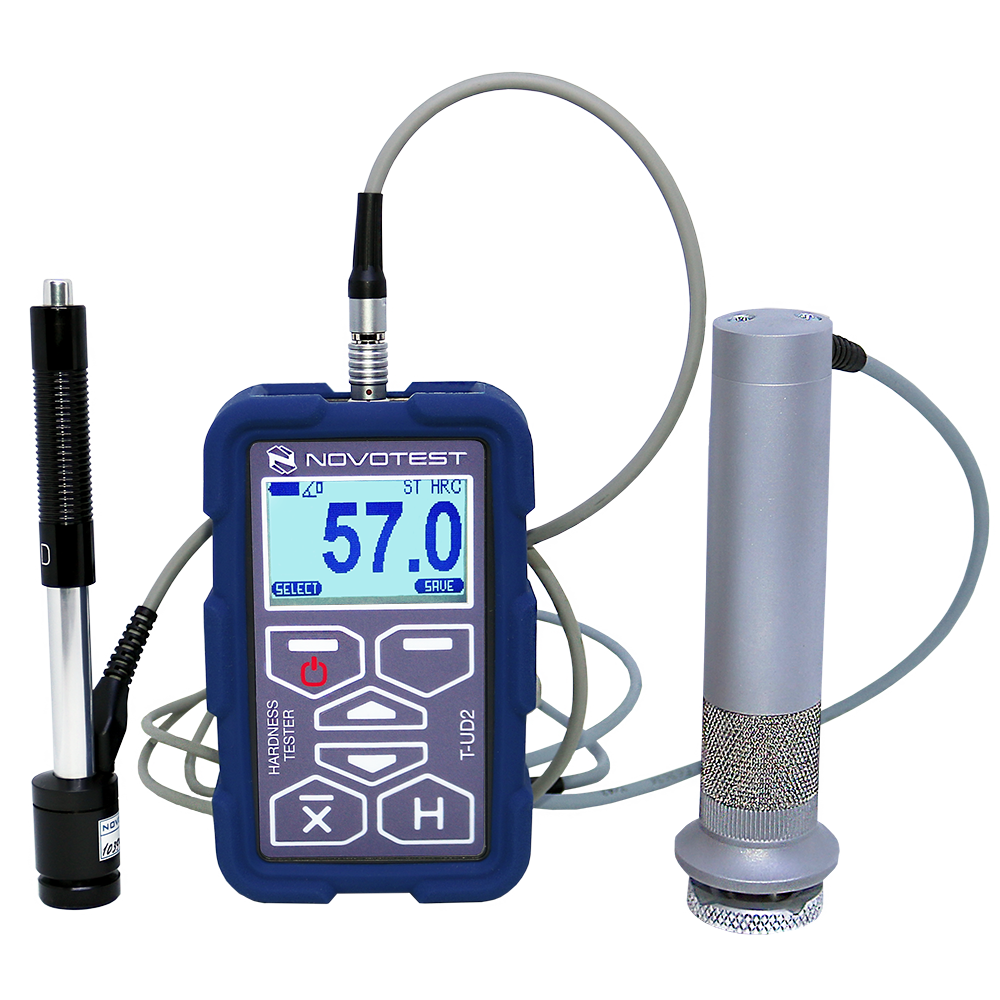

Combined Hardness Tester NOVOTEST T-UD2
Industrial inspection equipment
Overview
The combined hardness tester integrates the advantages of UCI and Leeb methods, enabling users to test both large rough-surfaced products and small, complex-shaped samples, making it ideal for non-destructive metal hardness testing across various materials and scales.
Key Highlights
- 2 removable probes: ultrasonic contact impedance (UCI) and dynamic rebound (Leeb)
- There are almost no restrictions for hardness testing (by weight configuration structure degree of mechanical and thermal treatment etc.)
- To evaluate changes in the hardness of the hardened layer depth articles and the effect of surface stress
- Wide range of hardness value
- Convenience and ease in operation
- Graphical contrast display with backlight
- Automatic recognition of probe
- Extended temperature range (cold-resistant down to -20 °C)
- Device has internal memory and allows user to transmit data to PC
Request a Quote
Get pricing, availability, and technical guidance.
Request QuoteResponse within 1 business day.
Technical Specifications
| Measurement Methods | UCI + Leeb |
| Hardness Scales | HV, HB, HRC, HRA, HRB, HS |
| Measurement Range | 200-960 HV (UCI), 170-960 HLD (Leeb) |
| Accuracy | ±4 HV (UCI), ±8 HLD (Leeb) |
| Display | LCD |
| Memory | 200 measurements |
| Interface | USB |
| Power Supply | Rechargeable battery |
| Weight | 300g |
| UCI probe types | 1kgf (10N) 2.2 lbf, 5kgf (50N) 11lbf, 10kgf (98N) 22lbf |
| Leeb probe types | D, DC, DL, C, D+15, E, G |
| Indenter | Diamond indenter (UCI), Hardened ball (Leeb) |
| Hardness scale | UCI probe: HRC, HB, HV, MPa, Leeb probe: HRC, HB, HV, HLD, MPa |
| Measurement hardness range: Rockwell, HRC Brinell, HB Vickers, HV | 20 – 70, 90 – 650, 230 – 940 |
| Measuring accuracy | HRC: 2HRC, HB: 10HB, HV: 15HV |
| Standards | ASTM A1038, ASTM A956 |
| Measuring direction | Any direction 360° |
| Materials | UCI probe – pre-calibrated for steel. Leeb probe – pre-calibrated for steel, alloy steel, stainless steel, cast iron. Additional custom scales and materials for calibration. |
| Storage of measurement results | 256 |
| Language | English, Spanish, Portuguese, French, Russian, *additional languages available by request |
| Operating temperature range, ° C | -20 … +40 |
| Power supply | 2pcs AA batteries |
| Dimensions, mm | 122x76x37 |
| Weight of electronic unit with battery, no more, kg | 0.25 |
| Batteries life, not less, h | 20 |
| Package gross weight, kg | 2 |
Applications
General manufacturing QC
Maintenance inspections
Field testing
Small workshops
Educational institutions
Basic hardness verification
