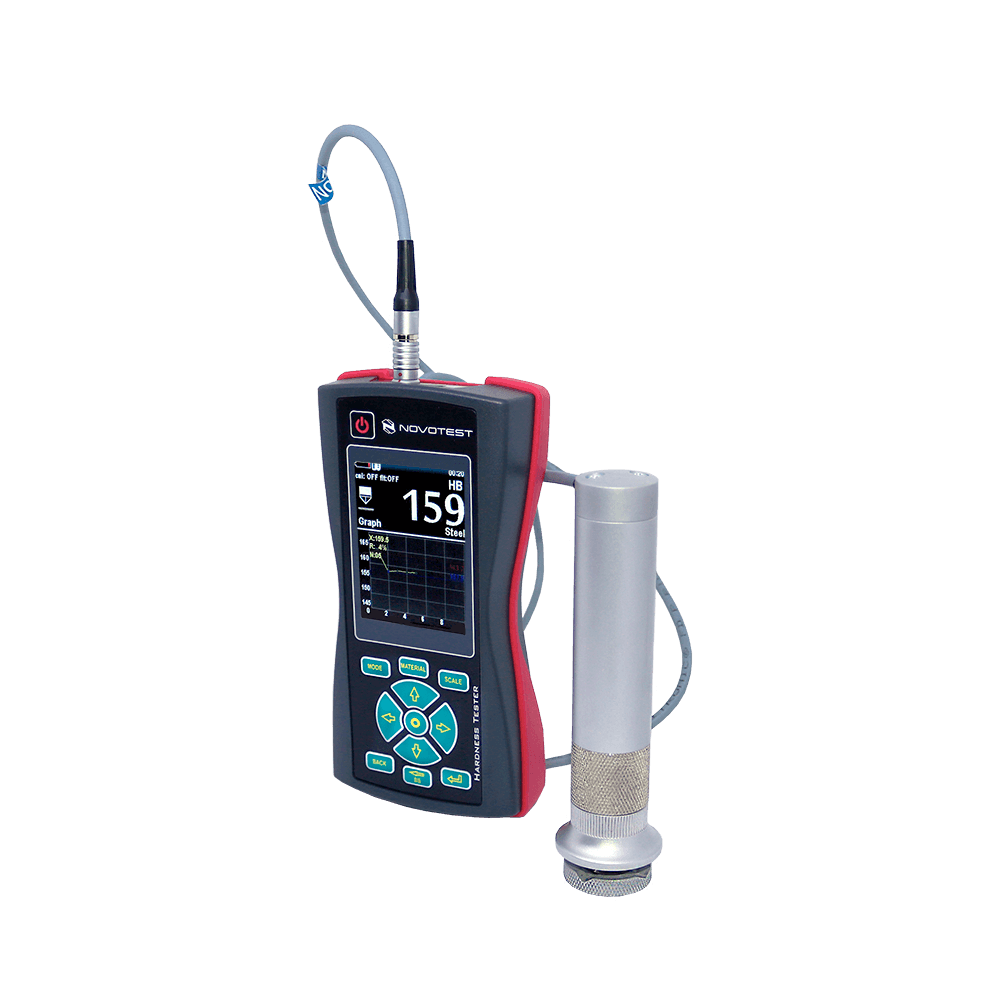

UCI Hardness Tester NOVOTEST T-U3

Industrial inspection equipment

Overview

Ultrasonic contact impedance (UCI) hardness testers, offered by our company, use a vibrating rod with a diamond tip to measure metal hardness and are designed to handle tasks that cannot solve with the Leeb method.

Key Highlights

Hardness measurement of any mass products with a thickness more than 1 mm – inaccessible to the dynamic (Leeb) hardness testers (small parts
thin-walled structures pipes tanks steel sheets articles of complex shape hardness control of metal coatings etc.)
Measuring the hardness of the surface hardened layer
Small imprint after measuring (mirror surfaces of shafts necks blades gear teeth etc.)
Wide range of hardness testing
Various measurement modes
Calibration of any scale in any range
Convenience and ease for measurement
Optimized number of buttons
Large full color graphic display with bright back-lighting
Calibrations stored in memory of probe
Extended temperature range (frost down to – 40°C)
Internal memory and communication with PC
New intuitive menu with tips on the buttons
Optional wireless mini printer
Water resistant case
Rubber protected bumper
Has different operating modes:
Graph – the mode of building of graph
Histogram – the mode of building of histogram
Statistics – the mode of statistic
Smart – the mode of filtering of incorrect measurements

Request a Quote

Get pricing, availability, and technical guidance.

Request Quote

Response within 1 business day.

Technical Specifications

Measurement Method	UCI (Ultrasonic Contact Impedance)
Hardness Scales	HV, HB, HRC, HRA, HRB, HS
Measurement Range	200-960 HV
Accuracy	±3 HV
Test Force	10 N (1 kgf)
Min. Thickness	1 mm
Test Area	0.5 mm diameter
Display	LCD with backlight
Memory	500 measurements
Power Supply	Rechargeable battery
Weight	280g
UCI probe types	10N/1kgf/2.2 lbf/HV1, 50N/5kgf/11lbf/HV5, 98N/10kgf/22lbf/HV10
Measuring range	Factory calibrations: – HRC: 20~70, – HB: 90~650, – HV: 100~750, – Tensile strength MPa: 370~1740 User calibrations for any scale and range (for example: 1-3000HV)
Measuring accuracy	HRC: 2HRC, HB: 10HB, HV: 15HV
Standard	ASTM A1038
Indenter	Diamond indenter (UCI)
Measuring direction	Any direction 360°
Data storage	Limited only by the memory card
Hardness scale	HRC, HB, HV, MPa Additional custom scales for calibration
Materials	Pre-calibrated for steel, Additional custom materials for calibration
Data display	Load applied/contact (UCI), Single test result, Max, Min, Average of tests, Number of tests, Deviation, Var. coeff., Histogram, Signal and Smart Mode (Filter of incorrect measurements)
PC cable connection (USB MINI B (to device) – USB A (to PC))	Online – NOVOTEST.INFO/USB-connect, Offline – NOVOTEST USB-Connect
Wireless connection with Android gadgets via NOVOTEST Lab App	T-U3 – No, T-U3 (Lab) – Yes
Language	English, German, French, Polish, Portuguese, Ukrainian, Russian, *additional languages available by request
Indication	Color LCD display (320×240)
Operating environment	Temperature:-20°C~40°C; Humidity: 30%~80%R.H.
Power supply	DC 4,5V (3 pcs batteries AA)
Batteries life	Approx. 10 hours
Instrument dimensions	160x75x30mm
Net weight	Approx. 0.3kg (without probe)
Gross weight (package)	1.7kg
Package dimensions	332710cm

Applications

Small precision parts testing

Thin-walled components

Surface-hardened layers

Gear teeth hardness

Bearing races inspection

Tool and die verification

Jewelry and watch components

Medical device testing
