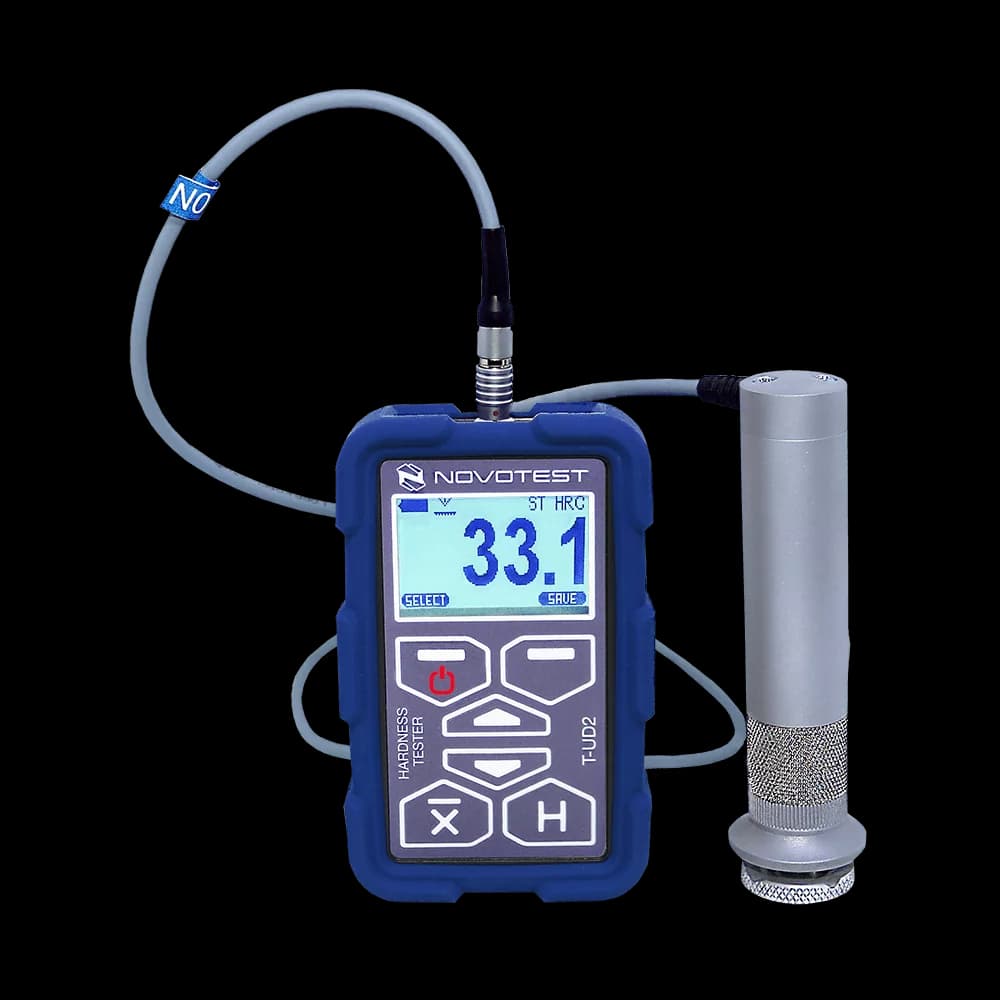

UCI Hardness Tester NOVOTEST T-U2

Industrial inspection equipment

Overview

This is the most affordable UCI hardness tester, ideal for small, thin-walled, or complex-shaped products, unlike Leeb method models. With over 10 years of proven reliability, it offers the best price-quality ratio in the global market.

Key Highlights

Possibility of measuring the hardness value of products with any weights and thickness from 1 mm (small items thin-walled structures pipes tanks steel sheets the products of complex shape hardness control of metal coatings etc.) and from 100g.
Small imprint on the surface of the tested product (user can test mirror surfaces necks shafts knives gear teeth etc.)
Hardness testing the hardening layer of the surface
Wide range of hardness measuring
Usability of measuring
Minimum number of controls
Extended temperature range (frost protected operating temperature up to -20 °C)
Device has internal memory and allows user to connect with PC
Intuitive menu

Request a Quote

Get pricing, availability, and technical guidance.

Request Quote

Response within 1 business day.

Technical Specifications

Measurement Method	UCI
Hardness Scales	HV, HB, HRC
Measurement Range	200-900 HV
Accuracy	±5 HV
Display	LCD
Memory	100 measurements
Power Supply	AA batteries
Weight	250g
UCI probe types	1kgf (10N) 2.2 lbf, 5kgf (50N) 11lbf, 10kgf (98N) 22lbf
Indenter	Diamond indenter (UCI)
Measurement hardness range: Rockwell, HRC Brinell, HB Vickers, HV Tensile strength, MPa User calibrations	Factory calibrations: – HRC: 20~70, – HB: 90~650, – HV: 100~750, – Tensile strength MPa: 370~1740 User calibrations for any scale and range (for example: 1-3000HV)
Hardness scale	±3% HUCI probe: HRC, HB, HV, MPaV
Measurement accuracy	HRC: 2HRC HB: 10HB HV: 15HV
Materials	UCI probe – pre-calibrated for steel. Additional custom scales and materials for calibration.
Measuring direction	Any direction 360°
Standard	ASTM A1038
PC cable connection	Online – novotest.info Offline – NOVOTEST AWP
Wireless connection with Android gadgets via NOVOTEST Lab App	T-U2 – No, T-U2 (Lab) – Yes
Storage capacity of measurement results	T-U2 – 256, T-U2 (Lab) – 256 in the device + in NOVOTEST Lab App limited only by the memory of the Android gadgets
Language	English, Spanish, Portuguese, French, Russian, *additional languages available by request
Dimensions, mm	1226523
Operating temperature range, ° C	-20 to +40
Power	2pcs AA batteries
Bateries life, hours, not less	20
Weight of electronic unit with batteries, no more, kg	0.2
Package gross weight, kg	2

Applications

Basic quality control

Routine inspections

Small parts testing

Educational use
