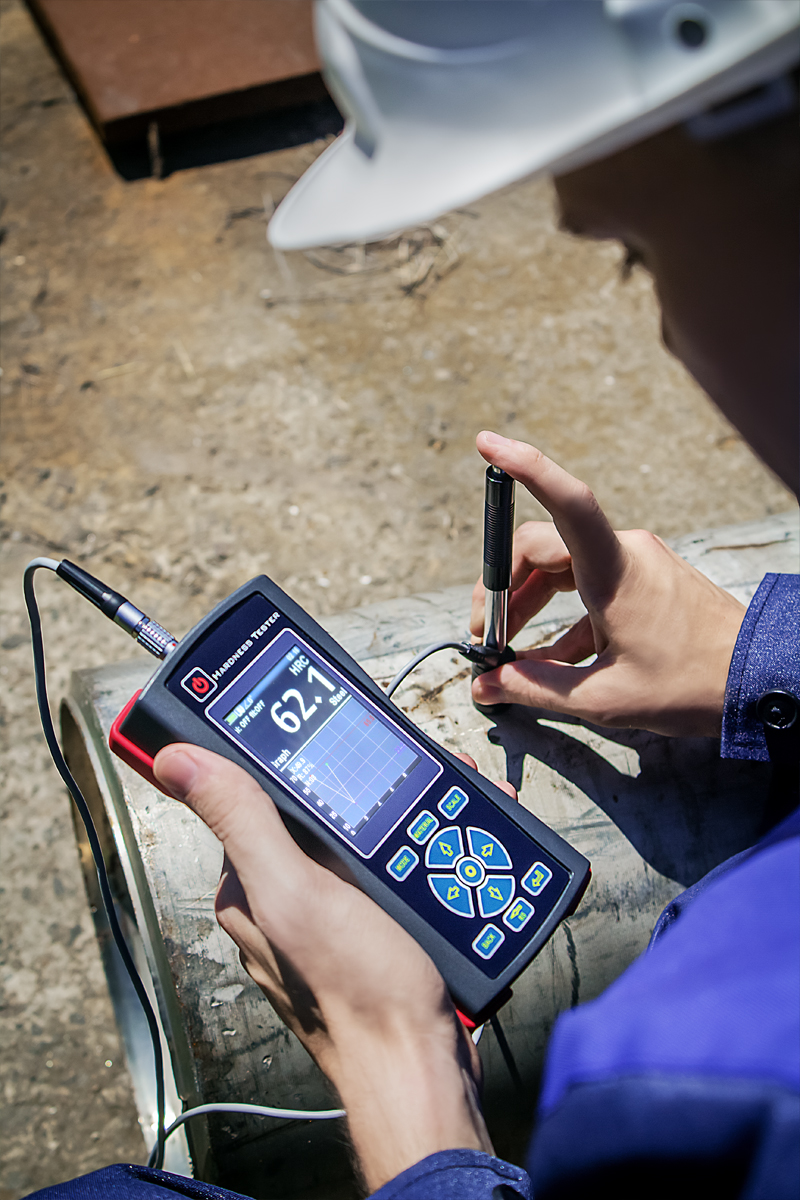

Leeb Hardness Tester NOVOTEST T-D3
Industrial inspection equipment
Overview
The Leeb method (ASTM A956) is the most popular for portable metal hardness testing due to its simplicity, requiring no special skills; it is ideal for large products over 5 kg and 10 mm thick, but can also measure smaller parts with proper fixing.
Key Highlights
- Large full color graphic display with bright backlighting
- Various measurement modes: statistic graph histogram smart signal
- Calibration of any scale in any range
- Convenience and ease of measurement
- Optimized number of buttons
- 88 combinations of materials and hardness scales (calibrations)
- Photofixation of tested objects
- Extended temperature range (frost down to – 40°C)
- Internal memory and communication with PC
- New
- intuitive menu with tips on the buttons
- Optional wireless mini printer
- Water resistant case
- Rubber protected bumper
Request a Quote
Get pricing, availability, and technical guidance.
Request QuoteResponse within 1 business day.
Technical Specifications
| Measurement Method | Leeb (Rebound) |
| Hardness Scales | HLD, HV, HB, HRC, HRA, HRB, HS |
| Measurement Range | 170-960 HLD |
| Accuracy | ±6 HLD |
| Impact Direction | Any (with correction) |
| Min. Weight | 5 kg (for portable parts) |
| Display | LCD with backlight |
| Memory | 600 measurements |
| Interface | USB |
| Power Supply | AA batteries |
| Weight | 320g (with probe) |
| Leeb probe types | D, DC, DL, C, D+15, E, G |
| Measuring range for steel | HRC:20~70, HB:90~650, HV:230~940, Tensile strength, MPa: 370~1740, User calibrations for any range (for example: HV100-3000) |
| Measuring accuracy | HRC: 2HRC, HB: 10HB, HV: 15HV |
| Standards | ASTM A 956, ASTM E 140, ASTM A 370, ISO 16859, DIN 50156, GB/T 17394, JB/T 9378, ISO 18265 |
| Indenter | Hardened ball (Leeb) |
| Measuring direction | Any direction 360° |
| Data storage | Limited only by the memory card up to 32Gb |
| Communication | Upload data to PC and export as a spreadsheet (USB cable and software included ) |
| Hardness scale | Leeb probe – HRC, HRB, HB, HV, HL, MPa, Additional custom scales for calibration |
| Materials | Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper, Additional custom materials for calibration |
| Data display | Angle (Leeb), Single test result, Max, Min, Average of tests, Number of tests, Deviation, Var. coeff., Histogram, Signal and Smart Mode (Filter of incorrect measurements) |
| Language | English, German, French, Polish, Russian, *additional languages available by request |
| Indication | Color LCD display (320×240) |
| Operating environment | Temperature:-20°C~40°C, Humidity: 30%~80%R.H. |
| Power supply | DC 4,5V (3 pcs batteries AA) |
| Instrument dimensions | 160x75x30mm |
| Net weight | Approx. 0.3kg (Without probe) |
| Battery life | Approx. 10 hours. |
Applications
Non-destructive hardness testing of metals & alloys
Wide measurement range across standard hardness scales
Testing small & complex or thin-walled parts
Rough or large surface testing
Portable field and workshop use with data connectivity
