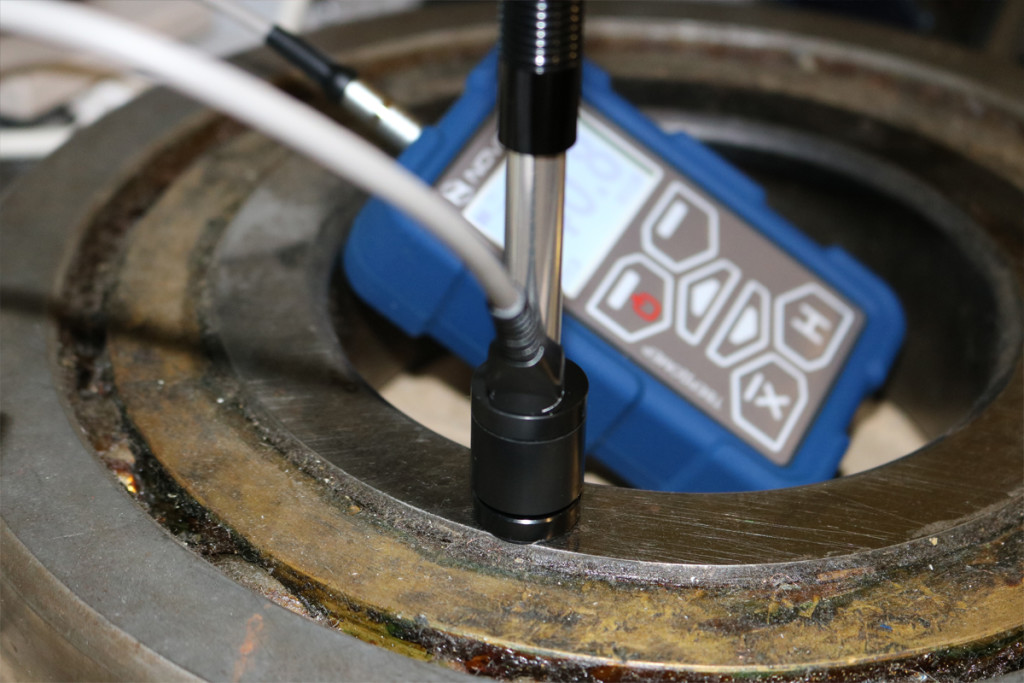

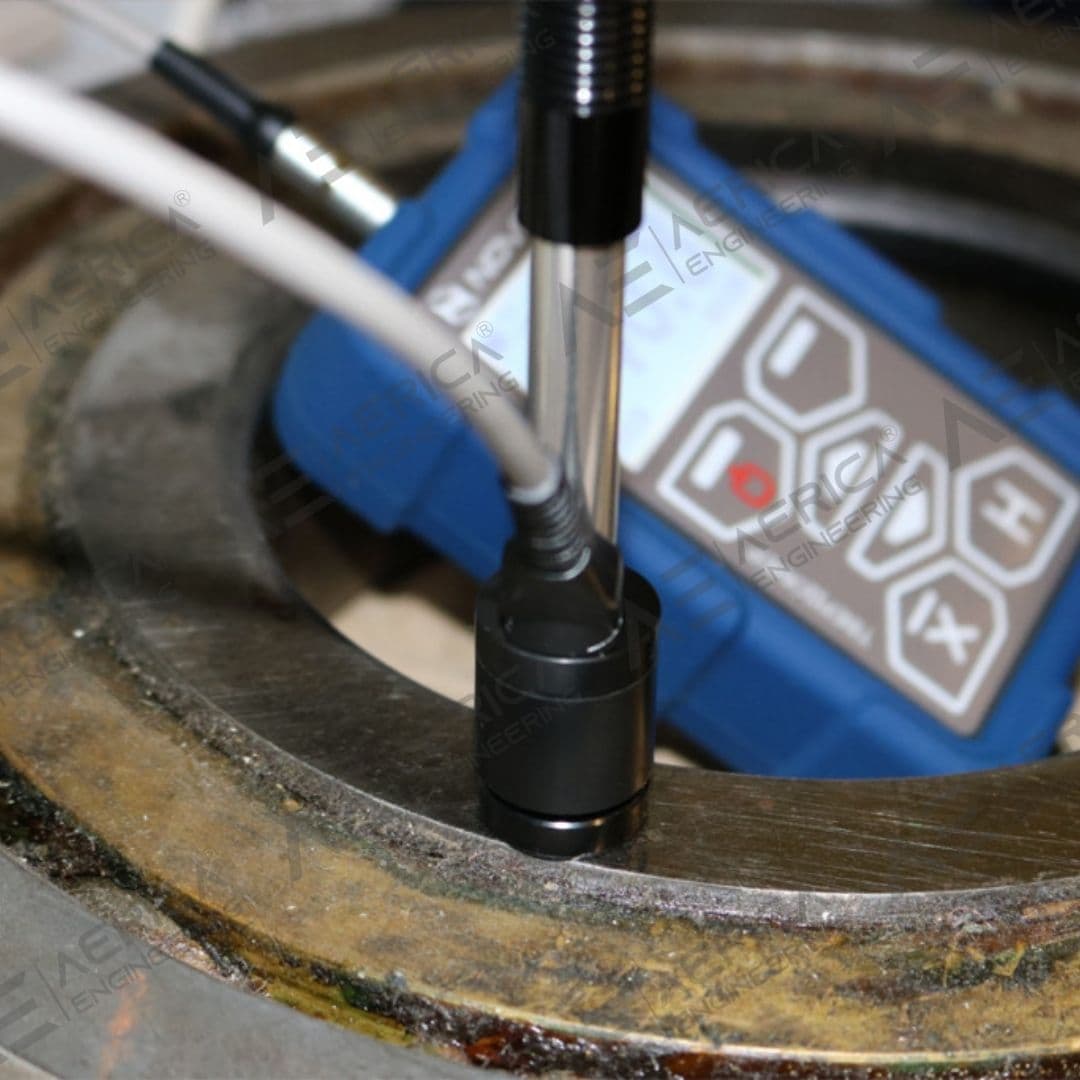

Leeb Hardness Tester NOVOTEST T-D2

Industrial inspection equipment

Overview

The Leeb hardness tester compliant with ASTM A956, is the world’s most popular metal hardness testing method due to its simplicity and ease of use, requiring no special skills. It works well with low alloy steels, stainless steels, and non-ferrous metals, and is ideal for bulk products without extensive surface preparation.

Key Highlights

Wide range of hardness measurement
Allows to test the products with coarse non-uniform structure (castings forgings)
Very ease and simplicity in setup and operation
Reasonable price (lower in comparison with the ultrasonic hardness tester)
User can save the results of hardness measurements into the internal memory of the device and after that transfer them to the PC. Device allows user to operate in a wide range of the temperature. Hardness tester T-D2 has a brightness high contrast display. Device also has calibration modes for hardness testing of wide range of metals and alloys.

Request a Quote

Get pricing, availability, and technical guidance.

Request Quote

Response within 1 business day.

Technical Specifications

Measurement Method	Leeb
Hardness Scales	HLD, HV, HB, HRC
Measurement Range	200-900 HLD
Accuracy	±10 HLD
Display	LCD
Memory	100 measurements
Power Supply	AA batteries
Weight	280g
Measurement hardness range: Rockwell, HRC Brinell, HB Vickers, HV Tensile strength, MPa User calibrations	Factory calibrations: – HRC: 20~70, – HB: 90~650, – HV: 100~750, – Tensile strength MPa: 370~1740, – HL: 300~800, User calibrations for any scale and range (for example: 1-3000HV)
Measurement accuracy	HRC: 2HRC, HB: 10HB, HV: 15HV, HLD: 4HLD
Hardness scale	Leeb probe – HRC, HB, HV, HL, MPa, Additional custom scales for calibration.
Materials	Leeb probe – pre-calibrated for steel, alloy steel, stainless steel, aluminum, cast iron. Additional custom scales and materials for calibration.
Standards	ASTM A 956, ASTM E 140, ASTM A 370, ISO 16859, DIN 50156, GB/T 17394, JB/T 9378, ISO 18265
PC cable connection	Online – NOVOTEST.INFO/USB-connect Offline – NOVOTEST USB-Connect
Wireless connection with Android gadgets via NOVOTEST Lab App	T-D2 – No, T-D2 (Lab) – Yes
Storage capacity of measurement results	T-D2 – 256, T-D2 (Lab) – 256 in the device + in NOVOTEST Lab App limited only by the memory of the Android gadgets
Language	English, Spanish, Portuguese, French, Russian, *additional languages available by request
Dimensions, mm	1226523
Operating temperature range, ° C	-20 to +40
Power supply	2pcs AA batteries
Batteries life, not less, h	20
Weight of electronic unit with batteries, no more, kg	0.2

Applications

Non-destructive hardness testing of metals

Hardness evaluation on bulk & large components

Quick quality control on rough or minimally prepared surfaces

Multi-scale hardness measurement & conversions

On-site / workshop testing with data storage
